SmartCamera EBSCV01

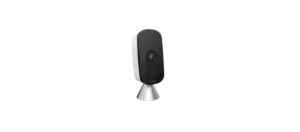

ecobee SmartCamera EBSCV01

The ecobee SmartCamera with Voice Control EBSCV01 is an indoor smart security camera designed for home monitoring, real-time communication, and privacy-conscious operation. It features a wide-angle lens, night vision, built-in microphones, a speaker, voice assistant controls, and a dual-purpose stand that supports tabletop placement or wall mounting.

The SmartCamera works with the ecobee mobile app, allowing users to check the camera’s view, adjust the viewing angle, and receive notifications about events requiring attention. Its privacy feature can automatically turn the camera off when family members are home and turn it back on when the house is empty.

Initial setup begins in the ecobee app. The camera can be placed on a suitable surface or mounted to a wall using its dual stand/mount, plastic wall anchor, and mounting screw.

Important: The ecobee SmartCamera EBSCV01 is designed for indoor use only. It must not be installed outdoors. Follow the installation instructions and maintain the required radio-frequency separation distance.

Product Overview

The ecobee SmartCamera combines indoor video monitoring with privacy controls, voice assistant hardware, and app-based camera viewing.

The camera uses its wide-angle lens to provide a view of the surrounding area. Through the ecobee mobile app, users can pan and tilt the displayed camera view to check different areas of the room.

The device also supports real-time conversations through the mobile app and SmartCamera.

Main Features

• Indoor home monitoring: Provides camera-based monitoring of indoor spaces.
• Wide-angle lens: Captures a broad view of the surrounding area.
• App-based pan and tilt: Allows users to adjust the camera view through the ecobee app.
• Automatic privacy control: Turns off when family members are present and turns on again when the home is empty.
• Real-time conversations: Supports communication between the mobile device and SmartCamera.
• Night vision: Includes night vision hardware for viewing in low-light conditions.
• Built-in microphones: Capture audio for supported camera and communication functions.
• Integrated speaker: Provides audio output.
• Voice assistant controls: Includes a voice assistant button and indicators.
• Mute button: Provides a dedicated physical mute control.
• Camera indicator: Displays camera-related status information.
• Notifications: Informs users about events requiring attention.
• Flexible mounting: Supports tabletop placement and wall mounting.
• Adjustable viewing angle: Allows the physical camera angle to be adjusted after installation.
• ecobee mobile app: Provides camera setup and viewing functions.

Technical Specifications

Parts and Components

The ecobee SmartCamera has controls on the top of the device and camera-related components on the front.

Top and Front Components

Voice Assistant Button

The voice assistant button is located on top of the SmartCamera.

It provides a physical control associated with the camera’s voice assistant feature.

Mute Button

The mute button is positioned beside the voice assistant button.

It provides a dedicated physical mute control.

Voice Assistant Indicators

The voice assistant indicators are located on the front of the device near the top.

Microphones

The built-in microphones are positioned on the front of the SmartCamera.

They support the camera’s audio and real-time communication features.

Night Vision

The SmartCamera includes night vision functionality to support camera viewing in low-light conditions.

Camera Indicator

The camera indicator is positioned on the front of the device.

Wide-Angle Lens

The wide-angle lens is positioned on the front of the SmartCamera.

It captures images for viewing through the ecobee app.

Speaker

The built-in speaker provides audio output for the camera’s supported communication functions.

Dual Stand/Mount

The dual stand/mount attaches to the back of the SmartCamera.

It supports two installation methods:

• Placement on a suitable surface.
• Mounting on a wall.

After installation, the camera can be angled to change its field of view.

Important Safety Instructions

The ecobee SmartCamera must be installed and operated according to the manufacturer’s safety and regulatory precautions.

Indoor Use Only

Warning: The SmartCamera is not designed for outdoor use.

Install and operate the camera indoors.

Improper installation may void the product warranty.

Child Safety

Warning: Choking hazard. Not for children under 3 years of age.

The SmartCamera and its installation components must be kept away from children younger than three years.

Radio Frequency Exposure

The SmartCamera complies with the applicable FCC and Canadian radio-frequency exposure requirements when installed correctly.

Maintain at least 8 inches (20 cm) between the camera’s antenna and people during normal operation.

The transmitter must not be installed or operated together with another antenna or transmitter in a co-located arrangement.

Unauthorized Modifications

Do not make unauthorized changes or modifications to the SmartCamera.

Changes not expressly approved by ecobee Inc. may void the user’s authority to operate the equipment.

Installation Precautions

• Use the SmartCamera indoors.
• Follow the ecobee installation instructions.
• Make sure the mounting hardware is secure.
• Check the camera’s position before drilling.
• Confirm that the mounted camera is firmly attached.
• Maintain the specified RF separation distance.
• Keep small installation components away from children under three.

Before First Use

The SmartCamera setup process begins through the ecobee mobile application.

Initial Setup Checklist

1. Prepare the SmartCamera and dual stand/mount.
2. Select a suitable indoor location.
3. Prepare a mobile device with the ecobee app.
4. Open the application.
5. Add the SmartCamera to begin setup.
6. Connect the camera to power when instructed.
7. Check the camera view in the ecobee app.
8. Adjust its placement or mounting angle as needed.

Choosing a Camera Location

The dual stand/mount allows the camera to be placed on a surface or mounted to a wall.

Select a location that provides a useful view of the intended indoor area.

Before wall mounting, check the camera’s view through the ecobee app.

The viewing angle can also be adjusted after mounting.

How to Set Up the ecobee SmartCamera

The ecobee mobile app provides the initial setup process for the SmartCamera.

Step 1: Open the ecobee App

1. Open the ecobee mobile application.
2. Access the device setup function.
3. Add the SmartCamera to begin configuration.

Step 2: Follow the App Instructions

Continue through the instructions displayed in the ecobee app.

The application provides the device-specific setup steps.

Step 3: Check the Camera View

Once the camera has been added and connected:

1. Open the SmartCamera in the ecobee app.
2. Check the displayed view.
3. Adjust the viewing angle as needed.

Additional setup information is available at https://ecobee.com/setup.

SmartCamera Placement Options

The ecobee SmartCamera supports two placement methods using the same dual stand/mount.

Tabletop Placement

The dual stand/mount can support the camera on a suitable surface.

Attach the stand to the camera and position it to obtain the desired view.

Wall Mounting

The dual stand/mount can also be attached to a wall.

The wall-mounting procedure uses a plastic anchor and mounting screw.

After mounting, the SmartCamera can be angled to adjust its field of view.

How to Wall Mount the ecobee SmartCamera

The installation procedure includes eight steps.

Step 1: Attach the Dual Stand/Mount

1. Locate the dual stand/mount.
2. Attach it to the back of the SmartCamera.
3. Connect the camera to power.

This allows the camera view to be tested before drilling.

Step 2: Test the Camera View

1. Hold the camera at the intended mounting location.
2. Open the ecobee app.
3. Check the camera’s view.
4. Confirm that the location provides the required coverage.

The viewing angle can still be adjusted after mounting.

Step 3: Drill the Mounting Hole

Use a 3/16-inch drill bit to drill a hole at the selected mounting location.

Step 4: Install the Plastic Anchor

1. Locate the plastic wall anchor.
2. Screw the anchor into the drilled hole.
3. Make sure the anchor sits flush against the wall.

Step 5: Fasten the Mounting Screw

1. Insert the mounting screw into the wall anchor.
2. Tighten the screw.
3. Leave a small amount of space between the screw head and the anchor.

This space allows the mount to hang on the screw.

Step 6: Hang the Mount

1. Remove the dual stand/mount from the camera.
2. Hang the mount on the installed screw.
3. Check whether the mount is secure.

If the mount feels loose, adjust the screw until the mount is secure.

Step 7: Attach the SmartCamera

1. Attach the SmartCamera to the installed mount.
2. Check that the camera is seated securely.
3. Confirm that the mounting assembly is stable.

Step 8: Adjust the Camera View

1. Open the ecobee app.
2. Select the SmartCamera.
3. Check the camera’s view.
4. Adjust the physical camera angle as needed.

The SmartCamera is now positioned for use.

Adjusting the Camera Viewing Angle

The ecobee SmartCamera supports two ways to change the view.

Physical Angle Adjustment

The dual stand/mount allows the physical camera angle to be adjusted.

This can be done after the camera has been installed.

App-Based Pan and Tilt

The ecobee mobile app allows users to pan and tilt the camera view when viewing images.

This helps users check different areas of the indoor space.

SmartCamera Privacy Features

The ecobee SmartCamera includes automatic privacy operation.

Automatic Camera Privacy

The camera can automatically turn off when family members are around.

When the house becomes empty, the camera can turn back on.

This behavior is designed to balance home monitoring with privacy.

Privacy Feature Overview

Additional feature information is available at https://ecobee.com/smartcamera-features.

Real-Time Conversations

The ecobee SmartCamera supports real-time conversations through a connected mobile device and the camera.

The system uses the built-in microphones and speaker for its audio communication functions.

Audio Components

Real-time communication is available through the supported ecobee mobile app features.

Notifications

The SmartCamera provides notifications for events that require attention and moments that matter.

Notifications help users stay informed about activity associated with the camera.

Additional feature information is available through the ecobee SmartCamera features page.

Night Vision

The ecobee SmartCamera includes night vision functionality.

This supports viewing in low-light conditions.

The wide-angle lens and camera-related components are located on the front of the device.

Voice Assistant Controls

The SmartCamera includes a voice assistant button and voice assistant indicators.

Voice Assistant Hardware

These controls are part of the camera’s voice-control hardware.

Mounting and Setup Troubleshooting

SmartCamera Mount Feels Loose

If the wall mount feels loose after hanging it on the mounting screw:

1. Remove the mount from the screw.
2. Adjust the screw position.
3. Reattach the mount.
4. Check that it is secure.
5. Attach the SmartCamera.

Camera View Needs Adjustment

If the camera does not show the desired area after mounting:

1. Open the ecobee app.
2. Check the SmartCamera view.
3. Adjust the camera angle using the dual stand/mount.
4. Check the updated view.

Installation Assistance

For additional setup information, visit https://ecobee.com/setup.

Radio and Television Interference

The ecobee SmartCamera has been tested for compliance with FCC Class B digital device limits.

Radio-frequency interference may occur under certain installation conditions.

How to Reduce Radio or TV Interference

If interference occurs:

1. Reorient or relocate the receiving antenna.
2. Increase the distance between the SmartCamera and the affected receiver.
3. Connect the affected equipment to an electrical outlet on a different circuit.
4. Consult the dealer or an experienced radio or television technician.

FCC and Regulatory Information

The ecobee SmartCamera complies with applicable United States and Canadian radio-frequency regulations.

Regulatory Identifiers

FCC Operating Conditions

The device complies with Part 15 of the FCC Rules.

Operation is subject to two conditions:

1. The SmartCamera must not cause harmful interference.
2. The SmartCamera must accept received interference, including interference that may cause undesired operation.

Canadian ISED Compliance

The SmartCamera contains licence-exempt radio transmitters or receivers that meet the applicable Innovation, Science and Economic Development Canada requirements.

The device must not cause interference and must accept interference that may affect its operation.

RF Exposure Requirements

The SmartCamera complies with the stated FCC and IC RSS-102 radiation exposure requirements for an uncontrolled environment.

The transmitter must be installed with a minimum separation distance of 8 inches (20 cm) from people.

It must not operate in conjunction with another antenna or transmitter in a co-located arrangement.

RoHS Compliance

The SmartCamera was designed and built according to RoHS Directive 2011/65/EC.

Apple HomeKit Information

The product documentation includes an Apple HomeKit legal notice.

The HomeKit designation identifies an electronic accessory designed for connection with supported Apple technology and certified by its developer to meet Apple’s performance standards.

Apple is not responsible for the device’s operation or compliance with applicable safety and regulatory standards.

Using the accessory with supported Apple devices may affect wireless performance.

Customer Support Information

ecobee provides product setup information and SmartCamera feature guidance through its official website.

Frequently Asked Questions

How do I set up the ecobee SmartCamera EBSCV01?

Open the ecobee mobile app and add the SmartCamera to begin setup. Follow the instructions displayed in the application. Once the camera is connected, use the ecobee app to check its view and adjust the camera position as needed.

How do I wall mount the ecobee SmartCamera?

Attach the dual stand/mount to the camera and check the desired view in the ecobee app. Drill a hole using a 3/16-inch drill bit, install the plastic anchor, and insert the mounting screw while leaving a small gap. Hang the mount on the screw, adjust it until secure, and attach the camera.

Can the ecobee SmartCamera be used outdoors?

No. The ecobee SmartCamera EBSCV01 is designed for indoor use only. The product warning states that it is not intended for outdoor installation and that improper installation may void the warranty.

Does the ecobee SmartCamera support night vision?

Yes. The SmartCamera includes night vision functionality for viewing in low-light conditions. The device also has a wide-angle lens, built-in microphones, and a speaker.

Can I adjust the ecobee SmartCamera viewing angle?

Yes. The dual stand/mount allows the physical camera angle to be adjusted after installation. The ecobee mobile app also provides pan and tilt viewing functions.

Does the ecobee SmartCamera turn off automatically when someone is home?

The SmartCamera supports automatic privacy operation that turns the camera off when family members are present and turns it back on when the house is empty.

Can I talk through the ecobee SmartCamera?

Yes. The SmartCamera supports real-time conversations between the connected mobile device and the camera. It contains built-in microphones and a speaker for supported audio communication functions.
