ideapad 700-15ISK

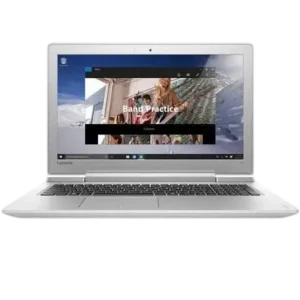

Lenovo ideapad 700-15ISK

The Lenovo ideapad 700-15ISK and 700-17ISK are laptop computers designed for everyday computing, internet access, document work, communication, and multimedia applications. Both models include a built-in display, integrated camera, microphone, wireless LAN antennas, speakers, keyboard, touchpad, and connections for external devices.

The laptops support Windows 10 and provide keyboard shortcuts for controlling volume, display brightness, Airplane Mode, the touchpad, and external display output. A separate numeric keypad is also included in the keyboard layout shown in this guide.

The computer includes USB connections, an HDMI port, RJ-45 Ethernet connection, memory card reader, combo audio jack, and Kensington security-lock slot. The Novo button provides access to the BIOS Setup Utility, boot menu, and Lenovo OneKey Recovery System.

Lenovo OneKey Recovery allows the system partition to be backed up and restored if Windows develops problems. The recovery system can restore Windows to its original factory condition or a previously created backup point.

The following instructions cover computer components, hardware connections, keyboard functions, Windows 10 setup, wireless networking, power management, BIOS configuration, system recovery, troubleshooting, and Lenovo support.

Technical Specifications

The exact hardware configuration may differ between the 700-15ISK and 700-17ISK.

Parts and Components

The laptop has built-in hardware components positioned around the display, keyboard, sides, and bottom cover.

Top Components

Integrated Camera

The integrated camera provides video input for supported communication applications.

Built-In Microphones

The microphones capture sound for applications that require audio input.

These include video conferencing, recording, and voice narration.

Wireless LAN Antennas

The built-in antennas communicate with the wireless LAN adapter to send and receive wireless signals.

The antenna locations are identified by dashed areas in the hardware illustration because they are not externally visible.

Computer Display

The LCD uses LED backlighting to display text, images, and video.

Important: The display must not be opened beyond 140 degrees.

Before closing the display, check that no objects are positioned between the screen and keyboard.

Pens or other objects trapped between these surfaces may damage the display panel.

Speakers

The built-in speakers provide audio output for Windows and supported applications.

Touchpad

The touchpad provides mouse-style navigation.

To move the pointer, slide a fingertip across the touchpad in the required direction.

The left and right touchpad button areas perform the same basic functions as conventional mouse buttons.

Press F6 to enable or disable the touchpad when Hotkey Mode is enabled.

Left-Side Ports and Connections

The left side of the computer contains connections for power, security, USB devices, memory cards, and audio equipment.

Left-Side Component Guide

Kensington Security-Lock Slot

A compatible security cable lock can be attached to the Kensington slot to help protect the laptop against unauthorized removal.

The installation procedure depends on the purchased security lock.

AC Power Adapter Jack

The AC power adapter connects to the dedicated power jack on the left side.

USB Port

The USB connection accepts compatible USB Type-A devices.

Memory Card Slot

The memory card slot accepts supported removable memory cards for storing and transferring data.

Combo Audio Jack

The combo audio jack supports compatible headsets.

Important: The jack does not support conventional standalone microphones.

Recording through certain third-party headsets may not work because of differences in connector standards.

Novo Button

The Novo button provides access to system startup and recovery functions when the computer is turned off.

It can be used to open:

• Lenovo OneKey Recovery System
• BIOS Setup Utility
• Boot Menu

Right-Side Ports and Connections

The right side contains the battery and power status indicators, USB 3.0 port, HDMI connector, and RJ-45 Ethernet port.

Right-Side Component Guide

USB 3.0 Port

The USB 3.0 connector supports compatible USB peripheral devices.

HDMI Port

The HDMI connector provides a connection to compatible equipment, including televisions and external displays.

RJ-45 Ethernet Port

The RJ-45 connector allows the laptop to connect to a wired Ethernet network.

The port includes a hinged cover that must be pressed downward gently before inserting the Ethernet cable.

Bottom Components

The bottom cover contains ventilation slots for cooling the computer.

Ventilation Slots

The ventilation openings allow internal heat to escape.

The openings must not be blocked during operation.

Blocked ventilation can cause the computer to overheat.

Battery and Power Indicator Lights

The Lenovo ideapad 700 includes indicators for battery charge and power status.

Battery Indicator Light Guide

When charging reaches 80%, the slowly blinking white indicator stops blinking.

Battery charging continues until the battery becomes fully charged.

Power Indicator Light Guide

Important Safety Instructions

The computer must be operated according to the safety precautions in the Lenovo Safety and General Information Guide.

Display Safety

Do not open the display beyond 140 degrees.

Do not force the hinges or close the display with objects between the screen and keyboard.

Cooling and Ventilation Safety

Keep the ventilation slots unobstructed during use.

Do not position the laptop where its cooling openings are blocked.

External Device Safety

Avoid connecting or disconnecting non-USB external device cables while the computer is powered on.

Doing so may damage the computer.

External devices with high power requirements, such as some USB optical drives, should use their own power adapters.

Data Protection During Transport

Before moving the computer, place it in Sleep mode or shut it down.

Moving the computer while its hard disk drive is spinning can damage the drive and cause data loss.

Recovery Data Protection

System recovery is irreversible.

Important files stored on the system partition must be backed up before restoring Windows.

Keep the AC power adapter connected during recovery.

Before First Use

The computer may require initial Windows configuration when it is started for the first time.

Initial Setup

1. Place the laptop on a suitable surface.
2. Make sure the ventilation openings are not blocked.
3. Connect the AC power adapter to the laptop.
4. Connect the adapter to an electrical outlet.
5. Press the Power button.
6. Follow the Windows setup instructions.

Windows 10 First-Time Configuration

The initial Windows setup may include:

• Accepting the end-user license agreement
• Configuring the internet connection
• Registering the operating system
• Creating a user account

Complete the required on-screen steps before using Windows.

How to Use the Keyboard

The keyboard includes standard typing keys, a separate numeric keypad, hotkeys, and Fn key combinations.

Numeric Keypad

The numeric keypad is positioned on the right side of the keyboard.

Press Num Lock to enable or disable numeric keypad input.

Keyboard Hotkeys

The hotkeys provide direct access to common system controls.

When Hotkey Mode is disabled in BIOS, the Fn key must be held while pressing the relevant hotkey.

Fn Key Combinations

Hold Fn and press the corresponding key.

Connecting USB Devices

The computer supports compatible USB devices using Type-A connectors.

How to Connect a USB Device

1. Insert the device’s USB Type-A connector into the laptop’s USB port.
2. Allow Windows to detect the device.
3. Wait for the required driver installation to complete.

Windows normally installs a driver automatically when a new device is connected.

Some devices require their drivers to be installed before the hardware is connected. Follow the device manufacturer’s instructions when applicable.

How to Safely Remove a USB Storage Device

1. Wait until all data transfers have finished.
2. Select Safely Remove Hardware and Eject Media in the Windows notification area.
3. Eject the storage device.
4. Disconnect it from the USB port.

If a USB device has its own power cable, connect the device to its power source before connecting it to the laptop.

Otherwise, Windows may not recognize the device.

Using the Memory Card Reader

The laptop supports several removable memory card formats.

Supported Memory Cards

Only one memory card should be inserted at a time.

Inserting a Memory Card

Insert the card into the memory card slot until it reaches the bottom.

Removing a Memory Card

1. Open Windows Safely Remove Hardware and Eject Media.
2. Disable the memory card.
3. Gently pull the card out of its slot.

Disabling the card before removal helps prevent data corruption.

Connecting an Ethernet Network Cable

The RJ-45 connector supports wired Ethernet networking.

Ethernet Connection Instructions

1. Locate the RJ-45 port on the right side.
2. Hold the Ethernet cable connector against the hinged cover.
3. Gently press the cover downward.
4. Insert the cable into the RJ-45 port.

For internet and network software settings, follow the instructions provided by the internet service provider.

Connecting an External Display

The HDMI connector supports compatible external displays.

HDMI Connection

1. Locate the HDMI port on the right side.
2. Connect a compatible HDMI cable.
3. Connect the opposite end to the external display.
4. Use the display-switching hotkey to change the selected display output.

The F10 hotkey controls switching between the built-in display and external equipment.

Windows 10 Start Menu

Windows 10 provides access to applications, system settings, and power controls through the Start menu.

Opening the Start Menu

Use either method:

1. Select the Start button in the lower-left corner.
2. Press the Windows key.

The Start menu displays installed and frequently used applications.

Windows Power Controls

The Power option in the Start menu provides access to:

• Sleep
• Shut down
• Restart

Windows 10 Action Center

Action Center displays notifications from Windows and installed applications.

Opening Action Center

Select the Action Center icon on the Windows taskbar.

The panel displays notifications and quick settings.

It can also be used to change common system settings.

Windows 10 Task View and Virtual Desktops

Task View displays running applications and allows multiple Windows desktops to be managed.

How to Open Task View

Select the Task View icon on the taskbar.

Creating a Virtual Desktop

1. Open Task View.
2. Select New desktop.

Switching Between Virtual Desktops

1. Open Task View.
2. Select the required desktop.

Sleep Mode and Shutdown Instructions

The computer supports Sleep mode for short periods of inactivity and Shutdown for longer periods when it will not be used.

Putting the Computer to Sleep

Use any of the following methods:

• Close the display lid.
• Press the Power button.
• Open Start > Power > Sleep.

Sleep mode allows the computer to resume without repeating the full startup process.

Waking the Computer

Use either method:

• Press any key on the keyboard.
• Press the Power button.

Shutting Down Windows 10

Method 1

1. Open Start.
2. Select Power > Shut down.

Method 2

1. Right-click the Start button.
2. Select Shut down or sign out > Shut down.

How to Connect to WiFi

The laptop supports wireless LAN networking.

Step 1: Enable Wireless Networking

Disable Airplane Mode using one of these methods:

• Open Action Center and turn off Airplane Mode.
• Press F7.
• Open Settings > Network & Internet > Airplane mode and set the switch to Off.

Step 2: Select a Wireless Network

After wireless communication is enabled, Windows scans for nearby networks.

1. Open the wireless network list.
2. Select the required network.
3. Choose Connect.

Step 3: Enter the Network Password

If the network requires authentication, enter the security key or passphrase.

Contact the network administrator or internet service provider if the password is unavailable.

Windows Help

Windows 10 includes a Get Started application that provides instructions for using operating system features.

Opening Get Started

1. Open Start.
2. Select All apps.
3. Select Get Started.

Lenovo Novo Button

The Novo button is located on the left side of the laptop.

It provides access to recovery and startup functions when the computer is turned off.

Novo Button Menu

How to Open the Novo Button Menu

1. Shut down the computer.
2. Press the Novo button.
3. Select the required function.

BIOS Setup Utility

The BIOS Setup Utility displays basic computer information and provides controls for startup and hardware settings.

How to Enter BIOS

1. Shut down the computer.
2. Press the Novo button.
3. Select BIOS Setup.

BIOS Functions

The setup utility provides options for:

• Boot devices
• Security
• Hardware modes
• Other system preferences

UEFI and Legacy Boot Modes

The laptop supports UEFI and Legacy Support boot modes.

Boot Mode Comparison

How to Change the Boot Mode

1. Open BIOS Setup using the Novo button.
2. Locate the Boot menu.
3. Change the boot mode to UEFI or Legacy Support as required.

The guide specifies changing to Legacy Support when installing legacy operating systems that cannot use the default UEFI boot mode.

Lenovo OneKey Recovery System

Lenovo OneKey Recovery is software for backing up and restoring the computer’s system partition.

It allows Windows to be restored to:

• Its original factory condition
• A previously created backup point

Recovery Partition

The computer includes a hidden partition containing the system image and OneKey Recovery program files.

Because the recovery partition occupies storage space, the available disk capacity may appear smaller than the drive’s stated capacity.

Lenovo OneKey Recovery is not available on computers preinstalled with GNU/Linux.

How to Back Up the System Partition

OneKey Recovery can create an image backup of the system partition.

Backup Instructions

1. Start Windows normally.
2. Press the Novo button or double-click the OneKey Recovery icon.
3. Select System Backup.
4. Choose a backup location.
5. Select Next.
6. Wait until the backup finishes.

Backup Locations

A backup image can be stored on:

• The local hard disk drive
• An external storage device

Backup Precautions

Remove a removable hard disk drive before starting OneKey Recovery as instructed by Lenovo.

Otherwise, data on the removable drive may be lost.

The backup process is available only when Windows starts normally.

How to Restore Windows Using OneKey Recovery

OneKey Recovery can restore the system partition from a backup or original factory image.

Restoring When Windows Starts Normally

1. Open Windows.
2. Press the Novo button or open OneKey Recovery.
3. Select System Recovery.
4. Allow the computer to restart into the recovery environment.
5. Follow the instructions to restore the system partition.

Restoring When Windows Cannot Start

1. Shut down the computer.
2. Press the Novo button.
3. Select System Recovery from the Novo Button Menu.
4. Press Enter.
5. Follow the recovery instructions.

Recovery Precautions

Important: The recovery process is irreversible.

Files on the system partition that must be retained should be backed up before restoration.

Keep the AC power adapter connected throughout the recovery process.

Recovery may take some time to complete.

Troubleshooting Guide

The following troubleshooting instructions cover startup, display, Sleep mode, battery, sound, recovery, and external device problems.

Common Problems and Solutions

Nothing Appears on the Screen

If the screen remains blank after startup:

1. Confirm that the AC adapter is connected.
2. Check that the power cord is plugged into a working electrical outlet.
3. Press the Power button again to confirm that the computer is turned on.

If the display remains blank after these checks, the computer requires service.

White Cursor on a Blank Screen

If only a white cursor appears when the computer starts, use Lenovo OneKey Recovery to restore Windows.

If the white cursor remains after restoration, the computer requires service.

Screen Goes Blank During Operation

A blank display may result from the computer entering Sleep mode or the LCD backlight being turned off.

To restore the display:

1. Press any keyboard key.
2. Press the Power button if necessary.
3. Press F9 to check whether the LCD backlight is disabled.

Screen Is Too Dim

Press F12 to increase display brightness.

If the Power indicator is blinking, press the Power button to resume from Sleep mode.

Display Is Distorted or Unreadable

Check that:

• The screen resolution is configured correctly.
• The color quality is set correctly.
• The monitor type is correct.

Incorrect Characters Appear

If characters are displayed incorrectly, check whether Windows and installed applications are correctly configured.

If the installations are correct, the computer requires service.

Sleep Mode Troubleshooting

Critical Low-Battery Error

If the computer displays a critical low-battery warning and shuts down immediately, connect the AC power adapter.

Computer Enters Sleep Immediately After Startup

Check that:

1. The battery is charged.
2. The operating temperature is within the permitted range.

If both conditions are normal and the problem continues, the computer requires service.

Computer Does Not Resume from Sleep

1. Connect the AC power adapter.
2. Press the Windows key or Power button.
3. If the computer remains unresponsive, perform a forced shutdown.

How to Reset an Unresponsive Laptop

If the computer stops responding:

1. Press and hold the Power button for eight seconds or longer.
2. If the computer still does not respond, disconnect the AC power adapter.

Important: A forced shutdown may cause unsaved data to be lost.

The computer may also stop responding if it enters Sleep mode during a communication operation. Lenovo recommends disabling the Sleep timer when performing network operations that may be interrupted by Sleep.

Sound Troubleshooting

No Sound from the Speakers

If the speaker volume is turned up but no sound is heard, check the following:

1. Mute is turned off.
2. The combo audio jack is not being used.
3. The speakers are selected as the audio playback device.

Battery Troubleshooting

Laptop Shuts Down Before the Battery Indicator Shows Empty

Recharge the battery.

Laptop Continues Operating After the Battery Indicator Shows Empty

Recharge the battery.

The same procedure applies when the battery indicator does not correspond to the computer’s remaining operating time.

USB and External Device Troubleshooting

If a connected external device does not operate correctly:

• Check that the device is connected properly.
• Verify that any required device driver is installed.
• Use an external power adapter for devices with high power requirements.
• Avoid connecting or disconnecting non-USB external devices while the computer is turned on.

An external device with insufficient power may not be recognized or may cause the computer to shut down.

Lenovo OneKey Recovery Troubleshooting

System Backup Fails

If OneKey Recovery starts a backup but the process fails:

1. Close all open applications.
2. Restart the backup process.
3. Check whether the backup destination is damaged.
4. Choose another backup location if required.

Recovery Discs

The computer does not include recovery discs.

Lenovo OneKey Recovery provides the factory recovery function through the recovery partition.

When to Restore Factory Settings

Factory recovery is intended for situations where the operating system cannot start correctly.

Important data must be backed up before restoration.

Drivers and Preinstalled Software

Lenovo provides installation files for certain factory-installed software and hardware drivers.

Preinstalled Software Installation Files

The computer does not include installation discs for Lenovo’s preinstalled desktop software.

Installation programs may be stored on:

• The D partition
• The C partition on selected models

If the installation files are unavailable locally, they can be downloaded from Lenovo Support.

Hardware Drivers

For factory Windows installations, hardware drivers are provided on the hard disk partition identified in the computer’s configuration.

Updated drivers can also be downloaded from:

http://support.lenovo.com

Warranty Information

The Lenovo ideapad 700-15ISK and 700-17ISK are covered by the Lenovo Limited Warranty applicable to the purchased computer.

The warranty duration and service conditions are provided in the Lenovo warranty flyer supplied with the product.

Warranty Service Information

The applicable warranty documents identify:

• Warranty period
• Warranty service type
• Applicable service conditions

Customer Support Information

Lenovo provides support resources for hardware problems, drivers, software, recovery, and product documentation.

Contacting Lenovo Support

Customer service instructions are provided in the Getting Help and Service section of the Lenovo Safety and General Information Guide.

Frequently Asked Questions

1. How do I enter BIOS on the Lenovo ideapad 700-15ISK or 700-17ISK?

Turn off the computer, press the Novo button on the left side, and select BIOS Setup. The BIOS Setup Utility provides access to startup devices, security settings, boot modes, and other supported system preferences.

2. How do I turn the touchpad on or off?

Press F6 to enable or disable the touchpad when Hotkey Mode is enabled. If Hotkey Mode has been disabled in BIOS, hold Fn while pressing F6.

3. How do I connect the Lenovo ideapad 700 to WiFi?

Disable Airplane Mode using F7 or Windows network settings. Open the wireless network list, select the required network, and click Connect. Enter the security key if requested.

4. What does the blinking amber battery light mean?

A fast-blinking amber light indicates that the battery charge is below 5%. A slowly blinking amber light means the battery is charging; its color changes to white after the charge reaches 20%.

5. How do I restore Windows using Lenovo OneKey Recovery?

When Windows starts normally, open OneKey Recovery and select System Recovery. If Windows cannot start, shut down the laptop, press the Novo button, and select System Recovery. Follow the instructions to restore the system partition. Back up important files first because recovery is irreversible.

6. What should I do if the Lenovo ideapad 700 screen stays black?

Check the AC power connection and confirm that the computer is turned on. Press F12 to increase brightness, F9 to check the LCD backlight, or the Power button to resume from Sleep mode. If the screen remains blank after the recommended checks, the computer may require service.

7. How do I reset the Lenovo ideapad 700 if it freezes?

Press and hold the Power button for eight seconds or longer. If the computer remains unresponsive, disconnect the AC power adapter. A forced shutdown may cause unsaved data to be lost.

8. Which memory cards work with the Lenovo ideapad 700?

The memory card reader supports SD, SDHC, SDXC, and MMC cards. Only one card should be inserted at a time. SDIO devices are not supported.
