ThinkPad 13

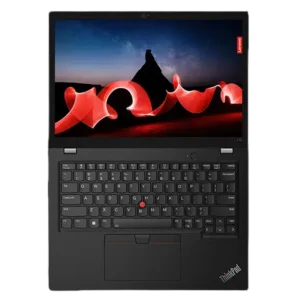

Lenovo ThinkPad 13

The Lenovo ThinkPad 13 is a notebook computer designed for everyday computing, business productivity, communication, internet access, and multimedia use. It features a 13.3-inch display, a six-row spill-resistant keyboard, Lenovo’s TrackPoint pointing device, an integrated trackpad, wireless networking, and multiple connections for external devices.

The ThinkPad 13 uses DDR4 memory and an M.2 solid-state drive. Depending on the model configuration, the display has a resolution of 1920 × 1080 or 1366 × 768 pixels. Some configurations include a multi-touch screen, fingerprint reader, and Trusted Platform Module (TPM) security features.

The computer provides USB 3.0, USB-C, HDMI, OneLink+, and audio connections. Its USB-C port supports power, data transfer, and video output, while the OneLink+ connection supports compatible Lenovo docking stations and Ethernet adapters.

The keyboard includes function keys for adjusting audio, display brightness, wireless connectivity, and other system settings. The TrackPoint pointing stick and trackpad provide mouse-style navigation without requiring an external pointing device.

The built-in rechargeable battery supports portable operation, while the AC power adapter supplies external power and charges the battery automatically. Sleep and Hibernation modes help conserve energy when the computer is not actively used.

For system configuration, the ThinkPad Setup utility provides access to UEFI BIOS settings, startup devices, security controls, and power-management options. The laptop also supports Lenovo recovery tools and Windows recovery functions.

Technical Specifications

Physical Dimensions

Operating Environment

The processor, display, security equipment, and some hardware features vary by model configuration.

Parts and Components

The ThinkPad 13 has integrated hardware components on the front, sides, and bottom of the computer.

Front Components

Integrated Camera

The camera supports photographs, video recording, and video conferencing through compatible software.

A camera-status indicator illuminates when the camera is operating.

Fingerprint Reader

Selected ThinkPad 13 models include a fingerprint reader.

After fingerprint enrollment, the reader can be used for authentication instead of entering a Windows password.

TrackPoint Pointing Device

The TrackPoint pointing stick is positioned in the keyboard.

It works with three dedicated buttons for clicking and scrolling.

Trackpad

The trackpad provides an additional method of pointer control using taps, clicks, swipes, and supported touch gestures.

Right-Side Ports and Connections

The right side of the ThinkPad 13 includes connectors for storage cards, audio devices, USB peripherals, external displays, and security accessories.

USB 3.0 Ports

The USB 3.0 ports support devices such as USB keyboards, mice, storage devices, and printers.

When inserting a USB connector, position the USB symbol upward.

USB-C Port

The USB-C connector supports power delivery, data transfer, and video output.

Compatible Lenovo accessories include:

• Lenovo USB-C to HDMI Adapter
• Lenovo USB-C to VGA Adapter
• Lenovo USB-C 45W AC Adapter

HDMI Port

The HDMI port connects the computer to compatible digital displays and audio devices.

Supported external displays can provide resolutions up to 3840 × 2160 pixels through HDMI.

Audio Connector

The 3.5 mm four-pole audio connector supports headphones and compatible headsets with microphone functions.

Conventional standalone microphones are not supported through this connector.

Left-Side Ports and Connections

Power Connector

The power connector supplies electricity through the AC adapter and charges the built-in battery.

OneLink+ Connector

The OneLink+ connector supports the ThinkPad OneLink+ Dock and the ThinkPad OneLink+ to RJ45 Adapter.

The RJ45 adapter provides wired Ethernet networking.

Warning: Telephone cables must not be connected to the Ethernet connector.

Always On USB

The Always On USB connector can charge selected smartphones and portable devices while the computer is:

• Turned on
• In Sleep mode
• In Hibernation or powered off while connected to AC power

Charging while the laptop is off and disconnected from AC power can be configured through the applicable Lenovo power-management program.

Fan Louvers

The fan louvers allow air to circulate through the computer.

The openings must remain unobstructed to prevent overheating.

Bottom Components

The underside of the ThinkPad 13 contains the emergency-reset hole and stereo speakers.

Emergency-Reset Hole

The emergency-reset hole provides a hardware reset function when the computer becomes unresponsive.

It is used only after the normal Power button shutdown procedure has failed.

Stereo Speakers

The two built-in speakers provide audio for applications, video playback, and other multimedia functions.

System Status Indicators

The ThinkPad 13 uses indicator lights to display operating, charging, and keyboard conditions.

Indicator Guide

System-Status Light

AC Power Indicator

Important Safety Instructions

The Lenovo ThinkPad 13 contains electrical components and a rechargeable battery.

Improper handling may cause injury, electric shock, fire, equipment damage, or data loss.

General Safety Precautions

• Keep liquids away from the computer and power adapter.
• Do not use damaged power cords, plugs, or adapters.
• Do not expose the computer to fire, excessive heat, or explosive environments.
• Keep ventilation openings uncovered.
• Do not place heavy objects on the display.
• Protect the laptop against drops, impacts, vibration, and twisting.
• Do not operate the computer when internal circuits are exposed.
• Disconnect electrical power before opening service covers.
• Use Lenovo-approved replacement parts.
• Keep plastic packaging away from children.

Heat and Ventilation Safety

The bottom cover, palm rest, and other surfaces may become warm during operation.

Prolonged contact with hot surfaces can cause discomfort or burns.

Do not use the laptop on flexible surfaces such as beds, sofas, or carpets that may block ventilation.

The temperature of the air entering the computer must not exceed 35°C (95°F).

Electrical Safety

Connect the computer to a properly wired electrical outlet.

Do not modify the power plug.

The electrical outlet should be easily accessible and located near the equipment.

Do not connect or disconnect equipment cables during electrical storms.

Battery Safety

The built-in rechargeable battery must not be opened, punctured, crushed, short-circuited, or exposed to liquids or fire.

The built-in rechargeable battery must be replaced only by a Lenovo-authorized repair facility or technician.

A damaged battery must not be used.

LCD Safety

The LCD contains glass and may break if the computer is dropped or handled roughly.

If display liquid contacts the skin or eyes, wash the affected area with water for at least 15 minutes. Obtain medical care if symptoms remain.

Headphone Safety

Listening through headphones at excessive volume can cause hearing damage.

Use compatible headphones and maintain a suitable listening volume.

Before First Use

The ThinkPad 13 should be placed in a stable, well-ventilated location before it is connected to electrical power.

Initial Setup

1. Place the computer on a suitable surface.
2. Check that ventilation openings are unobstructed.
3. Inspect the power adapter and power cord.
4. Connect the computer to AC power.
5. Press the Power button.
6. Follow the operating system’s setup instructions.

Connecting the AC Adapter

1. Connect the power cord to the AC adapter.
2. Connect the adapter to the laptop’s power connector.
3. Insert the power cord into an electrical outlet.

The battery charges automatically while the computer is connected to AC power.

Turning the Computer On and Off

Turning On the ThinkPad 13

Press the Power button.

The computer begins its startup sequence.

Shutting Down Windows 7

Open Start and select Shut down.

Shutting Down Windows 10

Open Start > Power > Shut down.

Changing the Power Button Function

1. Open Control Panel.
2. Change the view to Large Icons or Small Icons.
3. Select Power Options.
4. Select Choose what the power buttons do.
5. Configure the required function.

The Power button can be configured for shutdown, Sleep, or Hibernation.

Keyboard Shortcuts and Special Keys

The ThinkPad 13 includes function keys for common computer operations.

Function Key Guide

Fn Key Combinations

Fn Lock Operation

When Fn Lock is enabled, pressing F1–F12 activates the standard function-key actions.

When Fn Lock is disabled, pressing a function key activates its printed special function.

Press Fn + Esc to change the Fn Lock setting.

Customizing Function Keys

1. Open Control Panel.
2. Select Keyboard.
3. Open the Fn and Function Keys or ThinkPad F1–F12 Keys tab.
4. Select the desired settings.

Using the TrackPoint Pointing Device

The TrackPoint provides pointer control without requiring the fingers to move away from the typing position.

TrackPoint Components

Moving the Pointer

Apply gentle pressure to the pointing stick in the desired direction.

The amount of pressure determines the cursor’s movement speed.

Scrolling

Press and hold the center scroll bar while applying pressure to the pointing stick.

Replacing the TrackPoint Cap

The pointing-stick cap can be removed and replaced.

Use a compatible replacement cap with the grooves specified by Lenovo.

Replacement caps can be obtained through Lenovo.

Using the Trackpad

The trackpad supports pointer movement, clicking, scrolling, and other gestures.

Trackpad Controls

Customizing the Trackpad

1. Open Control Panel.
2. Select Hardware and Sound > Mouse.
3. Open the Mouse Properties settings.
4. Adjust the TrackPoint and trackpad functions.

The TrackPoint and trackpad can be enabled or disabled independently.

Multi-Touch Screen Instructions

Selected ThinkPad 13 configurations include a multi-touch screen.

Touchscreen Gestures

Windows 10 Touch Gestures

• Swipe from the right edge to open Action Center.
• Swipe from the left edge to open Task View.
• Swipe upward from the bottom of a full-screen application to show the taskbar.
• Swipe briefly downward from the top edge to reveal hidden title controls.
• Swipe from the top to the bottom in Tablet mode to close the current application.

Touchscreen Precautions

Do not press excessively on the display or use metallic objects for touch input.

Avoid using fingernails, gloves, or other unsuitable objects.

The touchscreen should be cleaned with a soft, lint-free cloth.

Battery Charging and Power Management

The ThinkPad 13 can operate using its built-in battery or an external AC power source.

Checking Battery Status

The Windows battery icon displays the remaining battery percentage and estimated operating time.

Battery consumption depends on:

• Display brightness
• Processor activity
• Storage drive activity
• Wireless networking
• Running applications

How to Charge the Battery

1. Connect the AC adapter to the computer.
2. Connect the adapter to an electrical outlet.
3. Allow the battery to charge.

A full charge normally requires approximately three to six hours, depending on battery size and environmental conditions.

Charging Requirements

The surrounding temperature must be at least 10°C (50°F) before charging.

The computer does not start a new charging cycle if the remaining battery capacity is greater than 95%.

Maximizing Battery Life

Lenovo recommends using appropriate power-saving settings and avoiding unnecessary battery consumption.

Sleep and Hibernation are available for periods when the computer is not in active use.

Sleep and Hibernation Modes

Sleep Mode

Sleep saves the current session in memory and reduces power consumption.

Press Fn + 4 to enter Sleep mode.

Press Fn to return to normal operation.

Hibernation Mode

Hibernation saves open applications, files, and system information to the storage drive before switching off the computer.

The previous session is restored when the computer resumes.

Power Plan Settings

1. Select the battery icon in the Windows notification area.
2. Open More power options.
3. Choose or configure the preferred power plan.

Connecting to WiFi

The ThinkPad 13 includes built-in wireless LAN networking.

WiFi Connection Instructions

1. Make sure wireless networking is enabled.
2. Select the wireless network icon in the Windows notification area.
3. Choose the required network.
4. Enter the network password if requested.
5. Complete the connection.

Improving Wireless Performance

For stronger reception:

• Reduce obstacles between the computer and access point.
• Open the laptop display slightly beyond 90 degrees.
• Move closer to the wireless router if signal strength is weak.

Airplane Mode

In Windows 10, Airplane Mode disables wireless functions.

To change the setting:

1. Open Start.
2. Select Settings > Network & Internet > Airplane mode.
3. Turn Airplane Mode on or off.

Bluetooth Connection Instructions

Bluetooth allows the computer to communicate with compatible nearby devices.

Enabling Bluetooth in Windows 10

1. Open Start.
2. Select Settings > Devices > Bluetooth.
3. Turn Bluetooth on.

Sending a File Through Bluetooth

1. Enable Bluetooth.
2. Right-click the file.
3. Select Send To > Bluetooth Devices.
4. Choose the receiving device.
5. Follow the on-screen instructions.

Using Bluetooth and WiFi simultaneously may reduce wireless data-transfer performance.

Wired Ethernet Connection

The ThinkPad 13 supports Ethernet through a compatible OneLink+ adapter or docking station.

Connecting to a Wired Network

1. Connect the compatible OneLink+ to RJ45 Adapter or dock.
2. Connect the Ethernet cable.
3. Attach the opposite end to the network equipment.

Ethernet Status Indicators

Connecting an External Monitor

The ThinkPad 13 supports external displays through HDMI and compatible display adapters.

Connecting a Monitor

1. Connect the display to the appropriate video connector.
2. Connect the display to electrical power.
3. Turn on the external display.
4. Use the display-switching key to select the required display mode.

Display Modes

Changing Display Settings

Right-click the Windows desktop and open Screen Resolution or Display Settings, depending on the operating system.

Select the required display, resolution, and orientation.

Using the Camera and Audio

Opening the Camera

For Windows 7, open Communications Utility.

For Windows 10, open the Camera application from the Start menu.

The camera-status indicator illuminates while the camera is active.

Audio Features

The computer supports:

• Stereo audio playback
• Integrated microphone recording
• Compatible headset input and output
• MIDI and MP3 playback
• PCM and WAV recording and playback

Audio settings can be adjusted through Windows or Realtek HD Audio Manager.

Using the Memory Card Reader

The 4-in-1 media card reader supports the following formats:

Inserting a Memory Card

Insert the card into the media card slot using the correct orientation.

Removing a Memory Card

1. Stop all active transfers.
2. Select the card through Windows Safely Remove Hardware.
3. Press the card to eject it.
4. Remove it from the slot.

Do not remove a memory card or enter Sleep or Hibernation while data transfers are active.

ThinkPad OneLink+ Dock

The optional ThinkPad OneLink+ Dock provides additional external connections.

Docking Station Connections

The docking station also includes a Power button and system-status indicator.

ThinkPad Setup and BIOS Configuration

The ThinkPad Setup program provides access to the UEFI BIOS configuration.

How to Enter BIOS

1. Restart the computer.
2. When the Lenovo logo appears, press F1.
3. Use the arrow keys to select the required menu.

BIOS Keyboard Controls

BIOS Menu Overview

Selecting a Boot Device

Press F12 during startup to open the Boot Menu.

Select the required boot device.

Updating UEFI BIOS

UEFI BIOS updates can be downloaded through Lenovo Support.

Use the update package and instructions applicable to the computer model.

Incorrect BIOS changes may prevent the operating system from starting.

Password and Security Settings

The ThinkPad 13 supports several security options.

Power-On Password

A Power-On password restricts unauthorized startup.

To configure it:

1. Restart the computer.
2. Press F1 to open ThinkPad Setup.
3. Select Security > Password > Power-on Password.
4. Enter the required password.
5. Press F10 to save changes.

Supervisor Password

The Supervisor password protects BIOS configuration settings.

If the Supervisor password is forgotten, Lenovo cannot reset it. The system board must be replaced through authorized service.

Hard Disk Password

A hard disk password restricts access to stored information.

The computer supports user and master hard disk password configurations.

If the required hard disk passwords are forgotten, Lenovo cannot recover the protected data. Drive replacement may be necessary.

Security Chip and Encryption

Selected models include a security chip or TPM.

Compatible Windows editions may use BitLocker Drive Encryption to protect stored information.

Fingerprint Reader Instructions

Some ThinkPad 13 models include a fingerprint reader.

Registering Fingerprints in Windows 10

1. Open Start.
2. Select Settings > Accounts > Sign-in options.
3. Follow the fingerprint enrollment instructions.

Using the Fingerprint Reader

1. Place the upper joint of a registered finger on the reader.
2. Apply light pressure.
3. Swipe the finger toward the user in one smooth movement.

Fingerprint Reader Maintenance

Clean the reader using a dry, soft, lint-free cloth.

Avoid scratching the reader with fingernails or sharp objects.

Dirty, wet, injured, or excessively dry fingers may affect authentication.

Installing Windows and Device Drivers

The guide provides operating system installation instructions for Windows 7 and Windows 10.

Important: Installing an operating system may erase stored information, including hidden folders. Important files must be backed up before installation.

Installing Windows 10

1. Open ThinkPad Setup.
2. Select Startup > Boot.
3. Choose the installation device.
4. Press F10 to exit.
5. Connect the installation media.
6. Restart the computer.
7. Follow Windows installation instructions.
8. Install the required drivers.
9. Apply Windows updates.

Installing Device Drivers

Lenovo provides device drivers through:

http://www.lenovo.com/ThinkPadDrivers

Select the computer model and download the required driver packages.

Windows Recovery Instructions

The recovery method depends on the installed operating system.

Windows 7 Recovery

Windows 7 configurations may include Lenovo Rescue and Recovery.

Available recovery functions include:

• Creating recovery media
• Backing up the system
• Restoring backup images
• Recovering selected files
• Restoring factory settings

Windows 10 Reset

1. Open Start.
2. Select Settings > Update & Security > Recovery.
3. Under Reset this PC, select Get Started.
4. Choose whether to keep or remove personal files.
5. Follow the on-screen instructions.

Advanced Startup

1. Open Recovery settings.
2. Select Restart Now under Advanced Startup.
3. Choose Troubleshoot > Advanced Options.
4. Select the required recovery function.

Creating a Windows Recovery USB

A USB drive with at least 16 GB of storage is required.

1. Connect the USB drive.
2. Search Windows for Create a recovery drive.
3. Open the recovery utility.
4. Follow the displayed instructions.

Creating the recovery drive erases the existing contents of the selected USB device.

Starting from a Recovery USB

1. Connect the recovery USB drive.
2. Restart the computer.
3. Press F12 before Windows starts.
4. Select the USB drive.
5. Choose the keyboard layout.
6. Select Troubleshoot.
7. Follow the recovery instructions.

Keep the computer connected to AC power during recovery.

Cleaning and Maintenance

Regular cleaning helps maintain computer performance and prevents dust accumulation.

Cleaning the Computer Cover

1. Prepare a mixture of mild detergent and water.
2. Apply the diluted solution to a soft cloth.
3. Wipe the external cover gently.
4. Remove residue using another slightly damp cloth.
5. Dry the surface.

Cleaning the Keyboard

1. Apply a small amount of isopropyl rubbing alcohol to a soft, dust-free cloth.
2. Wipe the keys individually.
3. Prevent liquid from entering the keyboard.
4. Allow the keyboard to dry.

Cleaning the Display

1. Wipe the display using a soft, dry, lint-free cloth.
2. For persistent marks, slightly moisten the cloth with water or a 50/50 mixture of water and isopropyl alcohol.
3. Remove excess liquid.
4. Wipe gently.
5. Dry the display before closing the lid.

Preventing Overheating

Keep the fan louvers clear.

Remove accumulated dust and avoid using the laptop on surfaces that block airflow.

Travel and Storage Instructions

The ThinkPad 13 should be protected from physical damage during transport.

Travel Precautions

• Use a padded carrying case.
• Avoid placing heavy objects on the computer.
• Disconnect external cables before transportation.
• Shut down or enter a suitable power-saving mode before packing.
• Keep the computer protected from liquids and excessive temperatures.

Airplane Use

Follow airline restrictions for wireless features.

Airplane Mode can be enabled through Windows network settings.

During aircraft takeoff, turn off or hibernate the computer as directed.

Battery Storage

For extended storage, Lenovo recommends keeping rechargeable batteries at approximately 30–50% charge.

Recharge them about once each year to prevent excessive discharge.

Troubleshooting Guide

The ThinkPad 13 can display error messages, produce beep codes, or show operating symptoms when hardware or software problems occur.

Lenovo Solution Center provides diagnostic tools for supported configurations.

Common Problems and Solutions

Computer Stops Responding

1. Press and hold the Power button for at least four seconds.
2. If the computer remains unresponsive, disconnect the AC adapter.
3. Insert a straightened paper clip into the emergency-reset hole.
4. Reconnect the AC adapter.
5. Attempt to restart the computer.

If the computer does not restart, disconnect external devices and repeat the reset procedure.

Liquid Spills

If liquid spills onto the computer:

1. Disconnect the AC adapter immediately.
2. Turn off the computer.
3. If necessary, use the emergency-reset hole.
4. Wait until the liquid has completely dried before restarting.

Leaving the computer powered on after a spill may cause serious electrical damage.

Error Codes and Messages

The computer may display diagnostic codes during startup.

UEFI Variable Storage Warning

The computer may report that system UEFI variable storage is nearly full.

This occurs when the firmware’s nonvolatile storage cannot accept additional data from the operating system or applications.

ThinkPad Setup provides a confirmation procedure for clearing applicable stored variables.

Because this procedure can remove operating-system or application-created firmware data, authorized service assistance is recommended when the correct action is uncertain.

Beep Error Codes

The ThinkPad 13 uses audible beep patterns for certain startup problems.

Hardware Replacement and Upgrades

The ThinkPad 13 supports replacement of certain hardware components according to Lenovo’s service instructions.

Replaceable Components

Before Replacing Components

1. Back up important data.
2. Shut down the computer.
3. Disconnect the power adapter and external cables.
4. Disable the built-in battery.
5. Allow the computer to cool.
6. Follow anti-static precautions.

How to Disable the Built-In Battery

1. Restart the computer.
2. Press F1 during startup.
3. Open Config > Power.
4. Select Disable Built-in Battery.
5. Confirm the operation.

The computer turns off automatically.

Wait three to five minutes before opening the computer.

M.2 SSD Replacement

The M.2 solid-state drive must be handled carefully to avoid permanent data loss.

The replacement procedure involves removing the base cover, removing the retaining screw, and carefully removing the installed drive.

The replacement drive is inserted at approximately a 20-degree angle and secured with the screw.

Memory Module Replacement

The computer supports replacement or installation of compatible memory modules.

The memory module is inserted into its slot at approximately a 20-degree angle and pressed downward until it locks into place.

Coin-Cell Battery Replacement

The coin-cell battery maintains system information when the main power source is disconnected.

Only a battery type recommended by Lenovo should be used.

After replacement, reset the system date and time in ThinkPad Setup.

Keyboard Replacement

Keyboard replacement involves loosening the retaining screws, releasing the keyboard frame, disconnecting the keyboard cables, and installing the replacement component.

The keyboard frame must be handled carefully to avoid damage.

Speaker Assembly Replacement

The speaker assembly can be replaced after removing the base cover.

The connector and retaining screws must be removed before lifting out the existing assembly.

Warranty Information

The ThinkPad 13 is covered by the Lenovo Limited Warranty applicable to the purchased computer and region.

The specific warranty terms, coverage duration, and service conditions are provided in the Safety, Warranty, and Setup Guide supplied with the product.

Warranty Service

Depending on the applicable warranty terms, Lenovo provides hardware diagnosis and repair services for qualifying problems.

Warranty service must be arranged through Lenovo or an authorized service provider.

Warranty Preparation

Before requesting warranty service, prepare:

• Product name
• Machine type and model
• Serial number
• Description of the problem
• Error messages or codes
• Operating system information
• Proof of purchase when required

Product Registration

The ThinkPad 13 can be registered with Lenovo.

Registration may provide faster service and product notifications.

Registration Website: http://www.lenovo.com/register

Follow the on-screen instructions to complete registration.

Customer Support Information

Lenovo provides technical assistance, device drivers, diagnostics, product documentation, and warranty-related support.

Finding the Machine Type and Serial Number

The machine type, model, and serial number are identified on the label attached to the bottom of the computer.

These details help Lenovo support personnel identify the correct hardware configuration.

Before Contacting Lenovo

Record the following:

• Whether the problem is continuous or intermittent
• Exact error message
• Operating system version
• Applications running when the problem occurred
• Steps required to reproduce the problem
• Diagnostic test results

Frequently Asked Questions

1. How do I enter BIOS on the Lenovo ThinkPad 13?

Restart the computer and press F1 when the Lenovo logo appears. This opens the ThinkPad Setup utility, where startup devices, security settings, hardware configuration, and power-management options can be changed. Press F10 to save changes and exit.

2. How do I reset the Lenovo ThinkPad 13 when it is not responding?

Press and hold the Power button for at least four seconds. If the computer remains unresponsive, disconnect the AC adapter and press the emergency-reset hole using a straightened paper clip. Reconnect the adapter and restart the computer.

3. How do I connect the ThinkPad 13 to WiFi?

Enable wireless networking, select the wireless network icon in the Windows notification area, and choose the required network. Enter the network password when prompted. Make sure Airplane Mode is disabled.

4. How long does the Lenovo ThinkPad 13 battery take to charge?

The battery normally requires approximately three to six hours to charge fully, depending on battery size and environmental conditions. Charging requires an ambient temperature of at least 10°C (50°F), and the computer does not restart charging when the battery is above 95%.

5. How do I enable or disable Fn Lock on the ThinkPad 13?

Press Fn + Esc to change the Fn Lock setting. When Fn Lock is enabled, the function keys operate as F1–F12 directly. When it is disabled, the keys activate the special functions printed on them.

6. Can I upgrade the RAM and SSD in the Lenovo ThinkPad 13?

The guide provides procedures for replacing the DDR4 memory module and M.2 solid-state drive. Both require the laptop to be shut down, disconnected from external power, and prepared by disabling the built-in battery before opening the case.

7. How do I reinstall or recover Windows 10 on the ThinkPad 13?

Open Settings > Update & Security > Recovery and select Reset this PC. Follow the displayed instructions to keep or remove personal files. If Windows cannot start, use a recovery USB drive with at least 16 GB of storage and select it through the F12 Boot Menu.

8. What should I do if the ThinkPad 13 screen stays black?

Check the AC power connection and make sure the computer is on. Increase the display brightness and use the display-switching key to select the internal screen. If the computer is in Sleep mode, press the Power button to resume. If the display remains blank, Lenovo recommends professional service.
