3A Wireless Charger SC1344

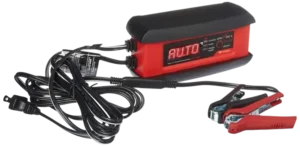

Schumacher 3A Wireless Charger/Maintainer SC1344

The Schumacher SC1344 3A Wireless Charger/Maintainer is an automatic battery charger designed for charging and maintaining compatible 6V and 12V lead-acid batteries. It supports standard (STD), GEL, and AGM rechargeable batteries and provides automatic voltage detection, multi-stage charging, and long-term battery maintenance.

The SC1344 is part of the Schumacher SchuLink+ system, which allows users to monitor battery charging through the SchuLink+ mobile application when the charger is connected to a wireless network and cloud service. The application displays charging progress, battery voltage, charging current, charger temperature, and charging status.

The charger operates independently without an internet connection. Its automatic charging and maintenance functions continue to work even when wireless monitoring is unavailable.

The unit provides 2A charging output for 6V batteries and 3A for 12V batteries. It includes three interchangeable quick-connect accessories: battery clamps, ring terminal connectors, and a 12V accessory plug.

Product Features

The Schumacher SC1344 includes the following features:

• Automatic 6V and 12V battery charging.
• 2A charging output for 6V batteries.
• 3A charging output for 12V batteries.
• Automatic battery voltage detection.
• Compatibility with STD, GEL, and AGM lead-acid batteries.
• Wireless network connectivity.
• SchuLink+ mobile app monitoring.
• Remote charging start and pause through the application.
• Digital display with charging status messages.
• Blue wireless connection indicator.
• Green charging and charged indicator.
• Red trouble indicator.
• Eight-stage automatic charging process.
• Automatic desulfation mode.
• Soft Start, Bulk, and Absorption charging modes.
• Monitoring, Float, and Maintain modes.
• Automatic charge-abort protection.
• Automatic charger temperature adjustment.
• Battery clamp quick-connect accessory.
• Ring terminal quick-connect accessory.
• 12V accessory plug quick-connect accessory.
• Built-in hook attachment.
• Automatic battery maintenance for vehicles in storage.

Technical Specifications

What’s Included in the Box

The SC1344 manual identifies the charger, three quick-connect cable accessories, and a Charger ID card used for app registration.

Parts and Components

The Schumacher SC1344 has a digital display, LED indicators, a Display/ON button, AC power cord, hook attachment, and interchangeable charging connectors.

Component Identification

Battery Clamp Connector

The battery clamp quick-connect assembly is used for charging batteries inside or outside a vehicle.

The red clamp is positive, and the black clamp is negative.

Ring Terminal Connector

The ring terminal quick-connect accessory can remain attached to compatible battery terminals.

It is suitable for battery connections on motorcycles, lawn tractors, ATVs, and snowmobiles.

12V Accessory Plug Connector

The 12V accessory plug allows charging or maintaining a vehicle battery through a compatible 12V accessory outlet.

The vehicle’s electrical system must permit power to pass through the outlet as described in the vehicle owner’s manual.

Hook Attachment

The built-in hook provides an alternative to placing the charger on a surface.

The charger can be hung safely outside the work area while keeping its cords away from moving or hazardous vehicle components.

Control Panel and LED Indicator Guide

The SC1344 uses three LED indicators and a digital display to show wireless connection, charging progress, maintenance operation, and fault conditions.

LED Indicator Meanings

Blue Connected LED

A solid blue Connected LED indicates that the charger has established a connection to a wireless network.

The charger can still operate as a battery charger/maintainer without this connection, but app-based charging progress will not be updated without a cloud connection.

Green Charging/Charged LED

A solid green LED indicates that the charger is actively charging the battery.

When charging is complete, the green LED begins pulsing to indicate that the charger has switched to maintain mode.

Red Trouble LED

A solid red Trouble LED indicates that the charger has detected a battery problem or reversed battery connections.

The digital display provides a message identifying the condition.

Display/ON Button

The Display/ON button activates the digital display.

During charging, the display may enter sleep mode to reduce power consumption.

Pressing the Display/ON button wakes the display so the charging status can be viewed.

Digital Display Messages

The SC1344 displays status messages for battery connections, charging progress, completed charging, and fault conditions.

Display Message Guide

The blue LED shown with some display conditions operates only when the charger is connected to a wireless network.

CONNECT BATTERY

This message appears when the charger is connected to AC power but does not detect a battery connection.

Check that the battery clamps or quick-connect accessory are properly connected and that the battery connection points are clean.

WARNING CLAMPS REVERSED

This message indicates that the battery clamps have been connected with reversed polarity.

Unplug the charger from AC power before correcting the battery connections.

CHARGING

The CHARGING message appears when the charger begins operating with a correctly connected 6V or 12V battery.

The green Charging/Charged LED remains solid during charging.

CHARGING 12V XX%

This message indicates charging of a 12V battery.

The percentage displayed represents the battery’s charging progress.

CHARGING 6V XX%

This message indicates charging of a 6V battery.

The display shows the charging percentage while the unit operates.

FULLY CHARGED AUTO MAINTAINING

This message indicates that charging is complete and automatic maintenance is active.

The green Charging/Charged LED pulses.

CHARGE ABORTED-BAD BATTERY

This message indicates that the charging process has been stopped because the battery cannot be charged normally or another specified charging fault has been detected.

The red Trouble LED illuminates.

Important Safety Instructions

WARNING: Risk of explosive gases, electric shock, fire, or serious injury.

Lead-acid batteries produce explosive gases during normal operation. Follow the safety precautions in this manual and those supplied by the battery and vehicle manufacturers.

General Safety Precautions

• Keep the charger out of reach of children.
• Do not expose the charger to rain or snow.
• Use only attachments recommended or sold by Schumacher Electric Corporation.
• Disconnect the charger by pulling the AC plug rather than the cord.
• Do not operate the charger with a damaged power cord or plug.
• Do not operate the charger if it has been dropped, struck, or otherwise damaged.
• Do not disassemble the charger.
• Have repairs performed by qualified service personnel.
• Disconnect the charger from AC power before cleaning or maintenance.
• Avoid using extension cords unless absolutely necessary.
• Never charge a frozen battery.

Lead-Acid Battery Safety

• Keep sparks and flames away from the battery.
• Never smoke near the battery or engine.
• Avoid dropping metal tools onto the battery.
• Remove metal jewelry before working near battery terminals.
• Follow all battery manufacturer warnings.
• Keep the charging area well ventilated.
• Keep the charger away from battery gases and acid.

Personal Safety

Another person should be nearby to provide assistance when working with a lead-acid battery.

Wear complete eye protection and protective clothing.

Keep soap and fresh water available when working near battery acid.

Battery Acid Exposure

If battery acid contacts skin or clothing, immediately wash the affected area with soap and water.

If battery acid enters the eyes, flush the eyes with cold running water for at least 10 minutes and obtain immediate medical attention.

Battery Clamp Safety

WARNING: The SC1344 can supply current to the battery clamps before a battery is connected. The clamps may spark if they touch each other.

Never allow the positive and negative clamps to touch each other.

Disconnect the charger from AC power before attaching or removing battery clamps.

Vehicle Starting Warning

Do not start the vehicle while the charger is connected to an AC electrical outlet.

Starting the vehicle with the charger connected to AC power may damage both the charger and the vehicle.

Battery Compatibility Precautions

Use the SC1344 only with compatible 6V or 12V lead-acid rechargeable batteries.

Do not use it to charge household dry-cell batteries.

Do not charge batteries that are frozen.

Battery Compatibility

The Schumacher SC1344 supports 6V and 12V lead-acid batteries, including standard, GEL, and AGM types.

Supported Battery Types

The manufacturer does not recommend charging batteries with a capacity below 12Ah.

Charging Larger Batteries

The SC1344 can maintain small and large healthy batteries that are already fully charged.

However, charging a large, deeply discharged battery, such as a large marine deep-cycle battery, may not restore its full capacity using this charger.

A higher-amperage charger may be required for charging large batteries.

Preparing the Battery for Charging

Prepare the battery and surrounding area before making any electrical connections.

Battery Preparation Instructions

1. Turn off all vehicle electrical accessories.
2. If the battery must be removed, disconnect the grounded terminal first.
3. Make sure the battery charging area is well ventilated.
4. Clean the battery terminals.
5. Prevent battery corrosion from contacting the eyes.
6. For batteries with removable cell caps, add distilled water to the level recommended by the manufacturer.
7. Do not overfill battery cells.
8. Follow the battery manufacturer’s charging instructions for sealed batteries.
9. Check whether the battery is rated for 6V or 12V.
10. Confirm that the battery is compatible with the charger.

Charger Placement Instructions

The charger must be positioned safely before use.

Proper Charger Placement

• Place the charger as far from the battery as the DC cables allow.
• Never place the charger directly above the battery.
• Do not allow battery acid to drip onto the charger.
• Do not operate the charger in an enclosed area without proper ventilation.
• Do not block airflow around the charger.
• Never place a battery on top of the charger.
• Use the hook attachment when appropriate to keep the unit safely outside the work area.

AC Power and Grounding Requirements

The Schumacher SC1344 operates from a nominal 120V AC electrical circuit.

The charger must be connected to a properly installed and grounded AC outlet.

Grounding Instructions

1. Use a grounded 120V AC outlet.
2. Make sure the charger plug fits the outlet correctly.
3. Do not alter the AC plug or power cord.
4. Do not connect the charger to an ungrounded electrical system.
5. If the plug does not fit, have a suitable grounded outlet installed by a qualified electrician.

Adapter Plug Restrictions

The use of an adapter plug is not permitted in Canada under the regulations identified in the manual.

Adapter plugs are not recommended for use with this charger in the United States.

Using an Extension Cord

An extension cord should be used only when necessary.

It must be properly wired, in good electrical condition, and adequately rated for the charger.

Extension Cord Requirements

The extension cord plug must have pins matching the charger’s plug in number, size, and shape.

Before First Use

Before operating the SC1344, prepare the charging cables and select the appropriate battery connection method.

Preparing the Charger

1. Remove the charger and accessories from the packaging.
2. Remove the cord wraps.
3. Uncoil the AC and DC cables.
4. Inspect the charger and cables for damage.
5. Select one of the three quick-connect cable accessories.
6. Position the charger on a dry, non-flammable surface or use the hook attachment.
7. Connect the selected accessory to the charger’s output cable.
8. Connect the accessory to the battery according to the appropriate connection procedure.
9. Plug the charger into a grounded 120V AC outlet.

Important: Use only one quick-connect accessory at a time.

Never connect the accessory cables to each other. Doing so can cause reversed polarity and damage the charger and battery.

How to Connect the Charger to a Battery Installed in a Vehicle

Before making connections, determine whether the vehicle uses a negative-ground or positive-ground electrical system.

Connecting to a Negative-Ground Vehicle

Most vehicles use a negative-ground system.

1. Make sure the charger is disconnected from AC power.
2. Turn off all vehicle accessories.
3. Identify the battery terminals.
4. Connect the red positive (+) clamp to the positive battery terminal.
5. Connect the black negative (-) clamp to a heavy-gauge metal part of the vehicle chassis or engine block away from the battery.
6. Keep the clamps away from carburetors, fuel lines, and sheet-metal body panels.
7. Make sure both clamps have secure electrical contact.

Connecting to a Positive-Ground Vehicle

For vehicles with a positive-ground electrical system:

1. Make sure the charger is disconnected from AC power.
2. Connect the black negative (-) clamp to the negative battery terminal.
3. Connect the red positive (+) clamp to a heavy-gauge metal part of the chassis or engine block away from the battery.
4. Make sure the connections are secure.

Disconnecting the Charger from a Vehicle

When charging is complete:

1. Disconnect the charger from AC power.
2. Remove the clamp attached to the chassis or engine block.
3. Remove the clamp attached to the battery terminal.

How to Connect the Charger to a Battery Outside the Vehicle

When charging a battery outside a vehicle, use an additional insulated negative battery cable to reduce the risk of sparks near the battery.

Required Cable

Connection Instructions

1. Place the battery in a well-ventilated area.
2. Identify the positive and negative battery terminals.
3. Attach a minimum 24-inch-long, 6 AWG insulated cable to the negative battery terminal.
4. Connect the red positive charger clamp to the positive battery terminal.
5. Position the free end of the insulated negative cable as far from the battery as practical.
6. Connect the black negative charger clamp to the free end of that cable.
7. Do not face the battery while making the final connection.

Disconnecting the Charger

Disconnect the charger from AC power first.

Remove the charging connections in the reverse sequence, making the first disconnection as far from the battery as practical.

Marine Battery Charging

A marine battery must be removed from the boat and charged on shore.

Charging aboard a boat requires equipment specifically designed for marine use.

Installing the SchuLink+ App

The Schumacher SC1344 supports wireless monitoring through the SchuLink+ mobile application.

The application was supplied for Apple and Android devices.

Mobile Device Requirements

These are the operating-system requirements specified for the SchuLink+ application in this manual.

App Installation Instructions

1. Locate the Charger ID card supplied with the SC1344.
2. Open the Apple App Store or Google Play Store.
3. Find the SchuLink+ application.
4. Install the application on the mobile device.
5. Open the application to begin setup.

Connecting the SC1344 to a Wireless Network

A wireless network connection allows charging information to be sent to the SchuLink+ cloud service for monitoring through the app.

Wireless Setup Instructions

1. Open the SchuLink+ application.
2. Select the Home icon.
3. Tap the three horizontal bars to open the menu.
4. Select SETUP.
5. Swipe through the setup screens.
6. Follow the on-screen instructions to configure the charger’s wireless network connection.

When the charger connects successfully to a wireless network, the blue Connected LED illuminates continuously.

Registering the SC1344 in the SchuLink+ App

The charger must be registered in the app before it can be monitored through the account.

Charger Registration Instructions

1. Open the SchuLink+ application.
2. Select the Home icon.
3. Tap the three horizontal bars to open the menu.
4. Select ADD CHARGER.
5. Enter the Charger ID and password from the Charger ID card.
6. Follow the remaining on-screen instructions to finish registration.

The Charger ID information is also printed on a label on the side of the charger.

The manual shows a Charger ID format similar to SC20xxxxx-yy.

Managing Multiple Chargers

The SchuLink+ application supports registration of up to 12 different chargers.

The Home screen displays registered chargers.

Swipe left on a charger to access options for editing or deleting its information.

Select Add Charger to register another unit.

Use the arrow next to a charger to open its monitoring screen.

How to Use the SchuLink+ App to Monitor Charging

The application provides charging status and battery information when the charger is properly connected and communicating through the cloud.

Starting App Monitoring

1. Connect the SC1344 to the battery using the appropriate connection procedure.
2. Plug the charger into a live grounded 120V AC outlet.
3. Check that the blue Connected LED is illuminated when wireless connectivity is established.
4. Open the SchuLink+ application.
5. Sign in using the registered email address and password.
6. Open the Home screen.
7. Select the charger to monitor.
8. View the charging information on the Status screen.

SchuLink+ Status Screen Guide

The Status screen presents battery charging information through a charge indicator ring, status icons, current readings, and charger controls.

Status Screen Functions

Charge Indicator Ring

The charge indicator ring uses color and a percentage value to show battery charging progress.

A completely green ring indicates that the battery is fully charged.

Charge Time

The Charge Time section provides charging-time information associated with the battery’s initial connection.

Charge Pause Switch

The Charge Pause switch can be used to start or pause the charging process.

The current charging status appears above the switch.

Pausing charging allows the battery voltage to be observed for a possible voltage drop caused by an electrical load.

The charging process is not reset unless the charger is disconnected from AC power and connected again.

Because the SC1344 automatically enters maintain mode after charging is complete, manually stopping charging is not required for normal maintenance operation.

Wireless Connection Icon

Tap the wireless icon to check signal strength.

AC Connection Icon

A green AC connection icon indicates that the charger is connected to a live 120V AC outlet.

When AC power is disconnected, the icon turns gray.

After AC power is lost, the charger can temporarily power its communication system from the connected battery for approximately five minutes to send a loss-of-power signal to the app.

Battery Connection Icon

Battery Voltage Reading

The Battery Voltage section displays the connected battery’s voltage.

The reading changes throughout the charging cycle.

If the voltage falls below 12.5V during Float or Maintain mode, the manual identifies possible excessive electrical draw from the vehicle or a battery approaching the end of its service life.

Charge Amps Reading

The Charge Amps section displays the charging current being supplied to the battery.

Charger Temperature

The Charger Temperature section shows the charger’s temperature status.

If the charger detects a temperature higher than normal, it automatically reduces the charging current.

Resetting the SchuLink+ App Password

If the account password is forgotten, use the password reset function.

Password Reset Instructions

1. Open the SchuLink+ login screen.
2. Select Forgot Password.
3. Open the password reset link sent to the registered email address.
4. Enter a new password.
5. Enter the password again for confirmation.
6. Select Reset Password to complete the process.

Using the Schumacher SC1344 Without Internet

The Schumacher SC1344 functions as a standalone automatic battery charger and maintainer.

An internet connection is not required for battery charging.

Without a cloud connection, the SchuLink+ app does not display updated charging progress.

The charger continues its normal charging and maintenance operation using its built-in controls.

How to Charge a Battery Installed in a Vehicle

The SC1344 can charge a compatible 6V or 12V battery while it remains installed in a vehicle.

Charging Instructions

1. Turn off all vehicle accessories.
2. Keep the vehicle hood or battery compartment open.
3. Clean the battery terminals.
4. Position the charger on a dry, non-flammable surface or use its hook attachment.
5. Keep the AC and DC cables away from fan blades, belts, pulleys, and other moving components.
6. Connect the battery clamps according to the vehicle grounding system.
7. Plug the charger into a live grounded 120V AC outlet.
8. The blue Connected LED illuminates when the charger is connected to a wireless network.
9. The green Charging/Charged LED illuminates continuously when charging begins.
10. The digital display scrolls CHARGING while the charger checks the battery connection, condition, and voltage.
11. Press the Display/ON button to monitor charging progress.
12. When the battery is fully charged, the green LED begins pulsing.
13. Disconnect the charger from AC power.
14. Remove the clamp attached to the vehicle chassis.
15. Remove the remaining clamp from the battery terminal.

How to Charge a Battery Outside the Vehicle

The SC1344 can also charge a compatible battery after it has been removed from the vehicle.

Charging Instructions

1. Place the battery in a well-ventilated area.
2. Clean the battery terminals.
3. Connect the charger using the appropriate outside-vehicle connection procedure and additional insulated battery cable.
4. Plug the charger into a grounded 120V AC electrical outlet.
5. Observe the green Charging/Charged LED when charging begins.
6. Press the Display/ON button to view the charging status.
7. Allow the battery to charge automatically.
8. When charging is complete, the green LED begins pulsing.
9. Disconnect the charger from AC power.
10. Disconnect the negative charging connection first.
11. Disconnect the positive charging connection.

Using the Quick-Connect Battery Clamps

The battery clamp quick-connect accessory is used for direct battery charging connections.

Connection Instructions

1. Disconnect the charger from AC power.
2. Connect the battery clamp assembly to the charger’s output cable.
3. Attach the battery clamps according to the required battery connection procedure.
4. Connect the charger to a grounded 120V AC outlet.
5. Allow the charger to begin automatic charging.

Important: The battery clamp assembly must not be connected to another quick-connect accessory cable.

Using the Ring Terminal Quick-Connect

The ring terminal connectors can remain attached to the battery for convenient future charging.

They are suitable for applications such as motorcycles, lawn tractors, ATVs, and snowmobiles.

Ring Terminal Installation Instructions

1. Disconnect the charger from AC power.
2. Loosen and remove the nuts from the battery terminal bolts.
3. Connect the red positive ring connector to the positive battery terminal.
4. Connect the black negative ring connector to the negative battery terminal.
5. Replace and tighten the terminal nuts.
6. Connect the ring terminal cable to the charger’s output cable.
7. Keep the wiring and connector away from metal surfaces and moving parts.
8. Plug the charger into a grounded 120V AC outlet.

The ring terminal assembly contains a 7.5A fuse.

Important: Disconnecting battery connections may cause some vehicle settings to be lost. Consult the vehicle owner’s manual before installation.

Using the 12V Accessory Plug Quick-Connect

The 12V accessory plug allows the SC1344 to charge or maintain a compatible vehicle battery through its 12V accessory outlet.

Charging Through the 12V Accessory Outlet

1. Connect the 12V accessory plug assembly to the charger’s output cable.
2. Insert the accessory plug into the vehicle’s 12V accessory outlet.
3. Route the charger’s AC power cord through an open vehicle window.
4. Plug the charger into a live grounded 120V AC outlet.
5. If the vehicle requires the ignition key to be turned on for the outlet to receive power, turn the key as directed by the vehicle manufacturer without starting the engine.

Consult the vehicle owner’s manual for instructions on activating the 12V accessory outlet without creating excessive electrical draw.

The 12V accessory plug assembly includes a 5A fuse.

Important: Disconnect the charger when the vehicle is in use.

Automatic Charging Mode

The SC1344 automatically determines the connected battery voltage and operates through its charging process.

Automatic Voltage Detection

The charger detects whether the connected battery is 6V or 12V.

Manual voltage selection is not required.

Automatic Charging Sequence

After a compatible battery is connected and AC power is supplied:

1. The charger checks the battery connection.
2. The charger determines the battery voltage.
3. The charger evaluates the charging condition.
4. Automatic charging begins.
5. Charging current is supplied according to the charging process.
6. When charging is complete, the charger automatically enters maintain mode.

Eight-Stage Charging System

The Schumacher SC1344 uses an eight-stage charging process.

Charging Stages

Stage 1: Auto Voltage Detection

The charger detects the connected battery voltage and determines whether it is a 6V or 12V battery.

Stage 2: Desulfation

If the charger detects a sulfated battery, it starts a special process intended to reduce sulfation.

This may allow the battery to accept a normal charge.

Stage 3: Soft Start

The charger gradually increases the charging current to begin charging gently.

Stage 4: Bulk Mode

The majority of the battery’s charging energy is supplied during Bulk mode.

At the end of this stage, the battery is approximately 80% recharged.

Stage 5: Absorption Mode

The charger holds the battery voltage constant while charging current gradually decreases.

This stage completes the charging process.

Stage 6: Monitoring Mode

The charger allows the battery to rest for 24 hours before checking for charge loss.

Stage 7: Float Mode

Float mode replaces energy that the battery loses through self-discharge or idle electrical consumption from a connected vehicle.

Stage 8: Maintain Mode

The charger checks the battery every 12 hours.

If charging energy needs to be replenished, the charger switches into Float mode.

Battery Charging Times

Battery charging time depends on the battery’s capacity, age, condition, and initial charge level.

The SC1344 provides a rated output of:

The charging-time comparison in the owner’s manual is based on batteries that are approximately 50% discharged. Actual charging time varies with battery condition and capacity.

For larger, deeply discharged batteries, a higher-amperage charger may be needed to restore full capacity.

Charge Completion and Maintain Mode

When a battery is fully charged, the SC1344 automatically switches to maintain mode.

Charge Completion Indicators

Maintain Mode Operation

Maintain mode monitors the battery and supplies charging current when required to keep it fully charged.

The charger can maintain compatible 6V and 12V batteries over extended periods.

Maintain Mode Current Limit

If the charger must provide its maximum maintenance current of 1.8A continuously for 12 hours, it enters Abort mode.

This may occur because:

• An electrical load is draining the battery.
• The battery is defective.
• The battery cannot maintain its charge.

If this condition occurs, remove connected electrical loads and have the battery checked if the problem continues.

Long-Term Battery Maintenance

The SC1344 is suitable for maintaining healthy batteries in vehicles that are being stored.

The charger and battery should still be checked occasionally for charging problems, electrical faults, and unexpected power consumption.

Desulfation Mode

A lead-acid battery left discharged for an extended period may become sulfated and unable to accept a normal charge.

The SC1344 includes an automatic desulfation process.

Desulfation Operation

1. The charger detects a sulfated battery.
2. It begins the desulfation process.
3. If desulfation is successful, normal charging resumes.
4. If the process fails, charging is aborted.

Desulfation may take up to 8 hours.

Desulfation Failure

If the desulfation process fails:

• The charger stops charging.
• The red Trouble LED illuminates.
• The digital display shows CHARGE ABORTED-BAD BATTERY.

Do not continue attempting to charge the battery.

Have the battery checked or replaced.

Aborted Charge Mode

The SC1344 automatically stops charging when the battery cannot be charged normally.

Reasons Charging May Be Aborted

Charging may be aborted if:

• The battery is severely sulfated.
• The battery has a shorted cell.
• The battery cannot reach a full charge.
• The battery is too large for the charger.
• Multiple batteries are connected as a battery bank and cannot be charged within the allowed time.
• The battery cannot retain its charge during maintenance.
• An excessive electrical load requires maximum maintenance current continuously for 12 hours.

Aborted Charge Indicators

Do not continue attempting to charge a battery after charging has been aborted.

Have the battery inspected or replaced.

Troubleshooting Guide

The following troubleshooting instructions cover wireless connection problems, power issues, battery connections, charging errors, and maintenance faults.

Schumacher SC1344 Troubleshooting Table

Blue Connected LED Is Not Working

If the blue Connected LED does not illuminate, the charger may not be connected to a wireless network.

Troubleshooting Steps

1. Open the SchuLink+ application.
2. Go to the Home screen.
3. Open the menu.
4. Select SETUP.
5. Follow the wireless network setup instructions.
6. Check whether the blue Connected LED illuminates.

The charger can continue charging and maintaining the battery independently without wireless connectivity.

Schumacher SC1344 Will Not Turn On

If the charger does not start when connected:

Check the AC Outlet

1. Confirm that the charger is plugged into a grounded 120V AC outlet.
2. Check whether the electrical outlet has power.
3. Inspect the fuse or circuit breaker supplying the outlet.

Check the Power Cord

Check the power cord and extension cord connections for loose-fitting plugs.

Do not use the charger with a damaged power cord or plug.

Display Shows CONNECT BATTERY

The CONNECT BATTERY message indicates that the charger is not detecting a proper battery connection.

Possible Causes

• Battery clamps are not making good electrical contact.
• Battery connection points are dirty.
• The in-line fuse in the ring connector assembly is defective.
• The in-line fuse in the 12V accessory plug assembly is defective.

Troubleshooting Steps

1. Check the battery clamp and chassis connections.
2. Clean the connection points if needed.
3. Confirm that the quick-connect accessory is securely connected.
4. If using ring terminals or a 12V accessory plug, check the in-line fuse.
5. Replace a defective accessory fuse with the correct rating.

Display Shows WARNING CLAMPS REVERSED

This message indicates that the battery connections are reversed.

Correcting Reversed Connections

1. Disconnect the charger from AC power.
2. Check the positive and negative battery connections.
3. Correct the clamp connections.
4. Plug the charger back into the grounded AC outlet.

Charging a 12V Battery but Display Shows CHARGING 6V

If a 12V battery is extremely discharged, the charger may initially identify it as a 6V battery.

The manual states that the charger may eventually recognize the battery as 12V and complete the charging process.

Red Trouble LED Remains Solid

A solid red Trouble LED indicates that the charger has detected a problem.

If the display shows CHARGE ABORTED-BAD BATTERY, the battery may be defective or too large for the charger.

Troubleshooting Steps

1. Disconnect the charger from AC power.
2. Remove the battery clamps according to the safe disconnection procedure.
3. Do not continue attempting to charge the same battery.
4. Have the battery checked or replaced.

If the battery is too large for the SC1344, use a charger with a higher amperage rating.

SchuLink+ App Does Not Update Charging Progress

The SchuLink+ application requires a cloud connection to reflect charging progress.

If wireless or internet connectivity is unavailable, the charger continues working independently, but the app does not display updated charging information.

Check the wireless network setup and Connected LED status when restoring monitoring.

Maintenance and Cleaning Instructions

The SC1344 requires basic cleaning and proper cable care.

Cleaning the Battery Clamps

After each charging session:

1. Disconnect the charger from AC power.
2. Disconnect the charger from the battery.
3. Wipe battery fluid or residue from the clamps.
4. Clean the clamps to prevent corrosion.

Cleaning the Charger Housing

Occasionally clean the charger housing using a soft cloth.

This helps maintain the outer finish and prevent corrosion.

Cable Maintenance

Coil the AC power cord and DC charging cables neatly when storing the unit.

This helps prevent accidental cable damage.

Storage Instructions

The Schumacher SC1344 must be stored indoors in a cool, dry location.

Proper Storage Procedure

1. Disconnect the charger from AC power.
2. Disconnect the charger from the battery if it is being removed from service.
3. Clean the charger and clamps.
4. Coil the power and charging cables neatly.
5. Store the charger in a cool, dry indoor location.

Battery Clamp Storage Precautions

Do not store the clamps:

• Clipped together.
• Attached to metal objects.
• Clipped around electrical cables.
• Attached to the charger’s cables.

Replacement Parts and Accessories

The Schumacher SC1344 has three replacement quick-connect accessories identified by manufacturer part numbers.

Replacement Parts

Accessory Fuse Ratings

Use the specified fuse ratings and replacement components approved for the SC1344.

One-Year Limited Warranty

The Schumacher SC1344 is covered by a one-year limited warranty from Schumacher Electric Corporation.

Warranty Coverage

Warranty Repair or Replacement

If the charger has a covered defect, Schumacher may repair the unit or replace it with a new or reconditioned unit.

The manufacturer determines whether repair or replacement is appropriate.

The purchaser must provide proof of purchase and pay shipping charges in advance when sending the unit for warranty service.

Warranty Exclusions

The limited warranty may be void if the charger:

• Is misused.
• Is handled carelessly.
• Is repaired or modified by an unauthorized person.
• Is resold through an unauthorized retailer.

Accessories not manufactured and approved by Schumacher Electric Corporation are not covered by the limited warranty.

Warranty Registration

Warranty registration is available through:

www.batterychargers.com

The warranty registration card should be submitted within 30 days of purchase.

Keep the original purchase receipt because it is required for warranty claims.

Customer Support and Repair Information

Schumacher Electric Corporation provides customer support for troubleshooting, repairs, and product returns.

Customer Support Details

Repair and Return Procedure

1. Contact Schumacher Customer Service at 1-800-621-5485.
2. Describe the charging or operating problem.
3. Follow the troubleshooting assistance provided.
4. Request a Return Merchandise Authorization (RMA) number if repair or return is necessary.
5. Do not ship the charger until the RMA number has been issued.

The warranty registration mailing address must not be used for repair shipments.

Frequently Asked Questions

1. What batteries can the Schumacher SC1344 charge?

The Schumacher SC1344 can charge compatible 6V and 12V lead-acid batteries, including standard (STD), GEL, and AGM rechargeable batteries. The manufacturer does not recommend charging batteries smaller than 12Ah. The charger provides 2A output at 6V and 3A at 12V.

2. Does the Schumacher SC1344 work without Wi-Fi or an internet connection?

Yes. The SC1344 works as an automatic battery charger and maintainer without an internet connection. Wireless connectivity is used for monitoring through the SchuLink+ application. Without a cloud connection, the app does not display updated charging progress, but the charger continues operating independently.

3. How do I connect the Schumacher SC1344 to the SchuLink+ app?

Install the SchuLink+ application, open the Home screen, and select SETUP from the menu to configure the wireless network. Then select ADD CHARGER and enter the Charger ID and password from the supplied Charger ID card or label on the charger. Follow the on-screen instructions to complete registration.

4. What does the blue light mean on the Schumacher SC1344?

A solid blue Connected LED indicates that the charger is connected to a wireless network. If the blue LED is not illuminated, the charger may not be connected to the network. Battery charging can still continue without wireless connectivity.

5. What does a pulsing green light mean on the Schumacher SC1344?

A pulsing green Charging/Charged LED indicates that the battery is fully charged and the charger has entered maintain mode. The digital display shows FULLY CHARGED AUTO MAINTAINING. The charger then monitors the battery and supplies charging current when necessary.

6. What does CHARGE ABORTED-BAD BATTERY mean on the SC1344?

The message indicates that the charger has stopped charging because it detected a battery or charging problem. Possible causes include severe sulfation, a shorted or weak battery cell, a battery that is too large, or excessive electrical draw during maintenance. Disconnect the charger from AC power and have the battery checked or replaced.

7. Can the Schumacher SC1344 stay connected to a battery during vehicle storage?

Yes. The SC1344 includes automatic Float and Maintain modes designed to keep a healthy battery charged over extended periods. The charger checks the battery every 12 hours and uses Float mode when additional charging is needed. The battery and charging process should still be checked occasionally.

8. Can the Schumacher SC1344 charge a battery through the vehicle’s 12V accessory outlet?

Yes. The supplied 12V accessory plug quick-connect can be used with a compatible vehicle accessory outlet that allows charging current to pass through it. Connect the accessory plug to the charger, insert it into the vehicle outlet, and connect the charger to a grounded 120V AC outlet. The charger must be disconnected when the vehicle is in use.
