Automatic Battery Charger SP1298

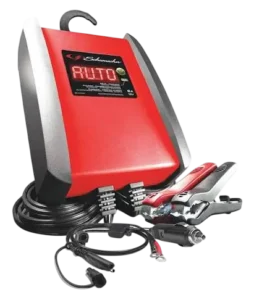

Schumacher Automatic Battery Charger SP1298

The Schumacher SP1298 Automatic Battery Charger is a 12V, 6A battery charger and maintainer designed for compatible lead-acid and lithium iron phosphate (LiFePO4) rechargeable batteries. It provides automatic charging, battery-condition monitoring, and long-term maintenance for batteries with a recommended capacity of 22–59Ah.

The SP1298 features a digital display, Battery Type button, and green LED charging status indicator. It allows selection between lead-acid and lithium-ion battery charging settings, automatically checks the battery condition, and switches to maintain mode when charging is complete.

The charger includes three quick-connect charging accessories: battery clamps, ring terminal connectors, and a 12V accessory plug. These provide different connection methods for vehicle batteries, motorcycles, lawn tractors, ATVs, and other compatible applications.

The charger operates from a grounded 120V AC electrical outlet and supplies a rated charging output of 6A at 12V DC.

Product Features

The Schumacher SP1298 includes the following features:

• Automatic 12V battery charging.
• 6A DC charging output.
• Compatibility with 12V lead-acid batteries.
• Compatibility with 12V LiFePO4 lithium batteries.
• Battery Type selection button.
• Digital charging status display.
• Automatic battery-condition analysis.
• Automatic charging and maintain mode.
• Float mode monitoring.
• Automatic charge-abort protection.
• Battery connection detection.
• Reverse-polarity warning.
• Green charging status LED.
• Automatic startup protection.
• Built-in cooling fan.
• Hook attachment for convenient placement.
• Quick-connect battery clamps.
• Quick-connect ring terminal connectors.
• Quick-connect 12V accessory plug.
• Support for long-term maintenance of healthy batteries.

Technical Specifications

Battery Compatibility

The Schumacher SP1298 is designed to charge compatible 12V lead-acid and lithium iron phosphate rechargeable batteries.

Supported Battery Types

Lead-Acid Battery Setting

The lead-acid charging setting is intended for compatible 12V rechargeable lead-acid batteries.

This setting must be selected before charging a lead-acid battery.

Lithium-Ion Battery Setting

The lithium-ion setting is intended for compatible 12V lithium iron phosphate (LiFePO4) batteries.

Select the lithium-ion setting when charging a supported LiFePO4 battery.

Battery Types That Must Not Be Charged

The SP1298 must not be used to charge household dry-cell batteries.

These batteries may burst during charging and cause injury or property damage.

Never charge a frozen battery.

The charger is intended for compatible 12V rechargeable batteries with the specified capacity range.

Parts and Components

The SP1298 includes a charger housing, digital display, control button, LED indicator, AC power cord, hook attachment, and interchangeable charging connectors.

Main Components

Battery Clamp Quick-Connect

The battery clamp quick-connect accessory provides a temporary connection for charging a battery inside or outside a vehicle.

The red clamp is positive, and the black clamp is negative.

Ring Terminal Quick-Connect

The ring terminal connectors can remain attached to a compatible battery.

This connection method is suitable for motorcycles, lawn tractors, ATVs, and snowmobiles.

12V Accessory Plug Quick-Connect

The 12V accessory plug provides a method for charging or maintaining a compatible vehicle battery through the vehicle’s 12V accessory outlet.

Hook Attachment

The hook attachment allows the charger to be suspended safely outside the work area.

It can be used instead of placing the charger directly on a surface.

Control Panel and Button Functions

The Schumacher SP1298 has a digital display, Battery Type button, and green charging status LED.

Digital Display

The digital display shows the battery and charger status.

During charging, the display may enter sleep mode and stop showing messages.

Pressing the display button activates the display again.

Battery Type Button

The Battery Type button selects the battery chemistry.

The manual identifies the following button selections:

The digital display confirms the selected battery type.

The charger remembers the battery type selected.

Battery Type Selection Messages

When the lead-acid setting is selected, the display shows:

LEAD-ACID BATTERY-PRESS AGAIN FOR LITHIUM ION

When the lithium-ion setting is selected, the display shows:

LITHIUM ION BATTERY-PRESS AGAIN FOR LEAD-ACID

The messages indicate the selected charging mode and the option to change it.

Green LED Indicator Guide

The SP1298 uses a green LED to show the current operating condition.

LED Indicator Meanings

Solid Green LED – Charging

A solid green LED indicates that the charger is connected and charging the battery.

The LED can also remain solid while the charger analyzes the battery condition.

Pulsing Green LED – Charged/Maintaining

A pulsing green LED indicates that the battery is fully charged.

The charger has switched to maintain mode and monitors the battery to keep it charged.

Flashing Green LED – Charging Aborted

A flashing green LED indicates that charging has been aborted.

The digital display shows CHARGE ABORTED-BAD BATTERY.

The battery or charging conditions must be checked.

LED Off

The green LED may remain off while the charger is waiting for battery-type selection, displaying connection instructions, or reporting certain battery connection conditions.

Important Safety Instructions

WARNING: Risk of explosive gases, electrical shock, fire, or serious injury.

Lead-acid batteries generate explosive gases during normal operation. Follow all charger, battery, and vehicle manufacturer safety instructions before beginning charging.

General Safety Precautions

• Keep the charger away from children.
• Do not expose the charger to rain or snow.
• Use only attachments recommended or supplied by Schumacher Electric Corporation.
• Disconnect the charger by pulling the plug rather than the power cord.
• Do not operate the charger with a damaged power cord or plug.
• Do not operate the charger if it has been dropped, struck, or damaged.
• Never disassemble the charger.
• Have repairs performed by qualified service personnel.
• Disconnect the charger from AC power before cleaning or maintenance.
• Avoid using extension cords unless necessary.
• Never charge a frozen battery.

Battery Explosion Prevention

• Never smoke near a battery or engine.
• Keep flames and sparks away from batteries.
• Avoid dropping metal tools onto a battery.
• Never allow battery clamps to touch each other.
• Keep the charging area well ventilated.
• Follow battery manufacturer warnings and safety instructions.

Personal Safety

Another person should be close enough to provide assistance when working near a lead-acid battery.

Wear complete eye protection and protective clothing.

Remove rings, bracelets, necklaces, watches, and other metal jewelry before working near battery terminals.

Battery Acid Safety

If battery acid contacts skin or clothing, immediately wash the affected area with soap and water.

If battery acid enters the eyes, flush the eyes with cold running water for at least 10 minutes and obtain immediate medical attention.

Electrical Safety

Always disconnect the charger from AC power before attaching or removing battery clamps.

Turning off the controls alone does not eliminate the risk of electrical shock during cleaning or maintenance.

Vehicle Starting Warning

Do not start the vehicle while the SP1298 is connected to an AC electrical outlet.

Doing so may damage the charger and vehicle.

California Safety Warning

The manufacturer states that the product contains one or more chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Preparing the Battery for Charging

The battery and charging area must be prepared before connecting the charger.

Battery Preparation Instructions

1. Turn off all vehicle electrical accessories.
2. If the battery must be removed from the vehicle, disconnect the grounded battery terminal first.
3. Make sure the charging area is well ventilated.
4. Clean the battery terminals.
5. Prevent battery corrosion from contacting the eyes.
6. For serviceable lead-acid batteries, add distilled water to the level recommended by the battery manufacturer.
7. Do not overfill battery cells.
8. Follow the manufacturer’s charging instructions for batteries without removable cell caps.
9. Confirm that the battery is rated for 12V.
10. Check the battery manufacturer’s charging precautions and recommended charging rate.

Charger Placement Instructions

Proper charger placement helps prevent corrosion, electrical damage, and ventilation problems.

Positioning the Charger

• Place the charger as far from the battery as the DC cables allow.
• Never place the charger directly above the battery.
• Do not allow battery acid to drip onto the charger.
• Do not operate the charger in an enclosed area without adequate ventilation.
• Keep the charger’s ventilation areas unobstructed.
• Never place a battery on top of the charger.
• Use the hook attachment when appropriate to keep the unit safely outside the work area.

The charger should be placed on a dry, non-flammable surface during operation.

AC Power and Grounding Requirements

The Schumacher SP1298 operates from a nominal 120V AC electrical circuit.

The charger must be connected to a properly installed and grounded outlet.

Grounding Instructions

1. Connect the charger to a grounded 120V AC outlet.
2. Make sure the plug fits the outlet correctly.
3. Do not modify the AC power cord or plug.
4. Do not use the charger with an ungrounded electrical system.
5. If the plug does not fit, have a suitable grounded outlet installed by a qualified electrician.

An improper electrical connection can cause electric shock or electrocution.

Adapter Plug Restrictions

The use of an adapter plug is not permitted in Canada under the regulations identified in the manual.

Adapter plugs are not recommended for use with this charger in the United States.

Using an Extension Cord

Using an extension cord is not recommended unless necessary.

If an extension cord must be used, it must be properly wired, in good condition, and adequately rated for the charger’s electrical requirements.

Extension Cord Requirements

The extension cord plug must have the same number, size, and shape of pins as the charger plug.

Before First Use

Prepare the charger and cables before connecting the battery.

Initial Setup Instructions

1. Remove all cord wraps.
2. Uncoil the AC power cord.
3. Uncoil the DC charging cables.
4. Inspect the charger and cables for damage.
5. Place the charger on a dry, non-flammable surface or use its hook attachment.
6. Select the appropriate quick-connect accessory.
7. Connect the accessory to the charger’s output cable.
8. Connect the accessory to the battery using the correct connection procedure.
9. Plug the charger into a grounded 120V AC outlet.
10. Select the appropriate battery type using the Battery Type button.

The charger analyzes the battery before beginning normal charging.

Connecting the Charger to a Battery Installed in a Vehicle

WARNING: A spark near a battery can cause an explosion.

Determine whether the vehicle uses a negative-ground or positive-ground electrical system before connecting the battery clamps.

Battery Terminal Identification

The positive battery terminal normally has a larger diameter than the negative terminal.

Connecting to a Negative-Ground Vehicle

Most vehicles use a negative-ground electrical system.

1. Turn off the ignition and electrical accessories.
2. Make sure the charger is disconnected from AC power.
3. Connect the red positive (+) clamp to the positive battery terminal.
4. Connect the black negative (-) clamp to a heavy-gauge metal part of the vehicle chassis or engine block away from the battery.
5. Keep the clamps away from fuel lines, carburetors, and sheet-metal body panels.
6. Make sure both connections are secure.

Connecting to a Positive-Ground Vehicle

For vehicles with a positive-ground electrical system:

1. Make sure the charger is disconnected from AC power.
2. Connect the black negative (-) clamp to the negative battery terminal.
3. Connect the red positive (+) clamp to a heavy-gauge metal part of the chassis or engine block away from the battery.
4. Make sure the connections are secure.

Disconnecting the Charger from a Vehicle

When charging is complete:

1. Disconnect the charger from AC power.
2. Remove the clamp attached to the vehicle chassis or engine block.
3. Remove the clamp attached to the battery terminal.

Connecting the Charger to a Battery Outside the Vehicle

When charging a battery removed from a vehicle, an additional insulated battery cable must be used for the negative connection.

Required Battery Cable

Battery Connection Instructions

1. Place the battery in a well-ventilated area.
2. Identify the positive and negative battery terminals.
3. Attach a minimum 24-inch-long, 6 AWG insulated battery cable to the negative battery terminal.
4. Connect the red positive charger clamp to the positive battery terminal.
5. Position the free end of the insulated negative cable as far from the battery as practical.
6. Connect the black negative charger clamp to the free end of that cable.
7. Do not face the battery while making the final connection.

Disconnecting the Charger

Disconnect the charger from AC power first.

Remove the battery connections in the reverse sequence, making the first disconnection as far from the battery as practical.

Charging Marine Batteries

A marine battery must be removed from the boat and charged on shore.

Charging a battery aboard a boat requires equipment specifically designed for marine use.

How to Charge a Battery Installed in a Vehicle

The SP1298 can charge a compatible 12V battery while it remains installed in a vehicle.

Charging Instructions

1. Turn off all vehicle accessories.
2. Keep the vehicle hood open.
3. Clean the battery terminals.
4. Place the charger on a dry, non-flammable surface or use its hook attachment.
5. Position the AC and DC cables away from fan blades, belts, pulleys, and other moving parts.
6. Connect the battery clamps according to the vehicle’s grounding system.
7. Connect the charger to a grounded 120V AC electrical outlet.
8. Select the correct battery type using the Battery Type button.
9. The green LED illuminates continuously when the charging process begins.
10. The digital display shows ANALYZING BATTERY while the charger checks the battery connection and condition.
11. Press the display button to monitor charging progress.
12. When the battery is fully charged, the green LED begins pulsing.
13. Disconnect the charger from AC power.
14. Remove the clamp attached to the vehicle chassis.
15. Remove the remaining clamp from the battery terminal.

How to Charge a Battery Outside the Vehicle

The SP1298 can charge a compatible battery after it has been removed from a vehicle.

Charging Instructions

1. Place the battery in a well-ventilated area.
2. Clean the battery terminals.
3. Connect the charger using the appropriate outside-vehicle connection procedure.
4. Plug the charger into a grounded 120V AC outlet.
5. Select the correct battery type.
6. The green LED illuminates continuously when charging starts.
7. The display shows ANALYZING BATTERY while the charger checks the battery.
8. Press the display button to monitor charging progress.
9. When charging is complete, the green LED begins pulsing.
10. Disconnect the charger from AC power.
11. Disconnect the negative charger clamp.
12. Disconnect the positive charger clamp.

Marine batteries must be removed from the boat and charged on shore.

Using the Quick-Connect Battery Clamps

The SP1298 includes a quick-connect battery clamp assembly for direct battery charging.

Battery Clamp Connection Instructions

1. Disconnect the charger from AC power.
2. Connect the charger’s output cable to the battery clamp quick-connect assembly.
3. Attach the clamps using the appropriate battery connection procedure.
4. Make sure the connections are secure.
5. Plug the charger into a grounded 120V AC outlet.
6. Select the correct battery type.
7. Allow the charger to analyze and charge the battery automatically.

When charging is complete, disconnect the AC power cord before removing the battery clamps.

Using the Ring Terminal Quick-Connect

The ring terminal quick-connect accessory allows a connection to remain attached to the battery for convenient future charging.

This arrangement is suitable for motorcycles, lawn tractors, ATVs, and snowmobiles.

Ring Terminal Installation Instructions

1. Disconnect the charger from AC power.
2. Loosen and remove the nuts from the battery terminal bolts.
3. Connect the red positive ring connector to the positive battery terminal.
4. Connect the black negative ring connector to the negative battery terminal.
5. Replace and tighten the battery terminal nuts.
6. Connect the ring terminal cable to the charger’s output cable.
7. Keep the wires and connector away from metal surfaces and moving parts.
8. Plug the charger into a grounded 120V AC outlet.
9. Select the correct battery type.
10. Allow the charging process to continue automatically.

When charging is complete, disconnect the AC power cord and then disconnect the quick-connect cable from the charger’s output cord.

Using the 12V Accessory Plug Quick-Connect

The 12V accessory plug allows charging or maintaining a compatible battery through a vehicle’s 12V accessory outlet.

Charging Through a 12V Accessory Outlet

1. Connect the 12V accessory plug quick-connect assembly to the charger.
2. Insert the accessory plug into the vehicle’s 12V accessory outlet.
3. Route the power cord through an open vehicle window.
4. Connect the charger to a grounded 120V AC outlet.
5. If the accessory outlet requires the ignition key to be turned on, turn the key without starting the engine.
6. Select the correct battery type.
7. Allow the charger to operate automatically.
8. When charging is complete, disconnect the AC power cord.
9. Remove the 12V accessory plug from the vehicle outlet.

Important Quick-Connect Safety Precautions

The SP1298 supports three interchangeable quick-connect accessories.

Never connect the battery clamp and ring terminal connectors together to extend the charging cable or for unrelated charging applications.

Doing so may cause reversed polarity or overcharging conditions.

Use the appropriate connector for the intended battery charging arrangement.

Automatic Charging Mode

The SP1298 automatically charges a compatible battery after the correct battery type is selected and the charger detects a proper battery connection.

How Automatic Charging Works

1. The charger checks the selected battery type.
2. It analyzes the connected battery.
3. The green charging indicator illuminates continuously.
4. The charger begins charging the battery.
5. The digital display shows charging progress.
6. When the battery reaches full charge, the charger automatically switches to maintain mode.

The pulsing green LED indicates that the charging process is complete.

Battery Charging Times

Charging time depends on the battery capacity, age, condition, and initial charge level.

The owner’s manual includes a general charging-time comparison chart for different battery applications and charging current ratings.

Battery Charging Time Chart

The times are based on batteries approximately 50% discharged and may vary according to battery age and condition.

Important: This is the manufacturer’s general charging-time comparison chart. The SP1298 is rated at 6A and does not provide selectable 2A, 8A, or 10A output modes. The chart also includes battery sizes outside the SP1298’s recommended 22–59Ah range; those entries do not establish compatibility with this model.

Battery Connection Detection

The SP1298 checks that a battery is properly connected before starting charging.

CONNECT CLAMPS

If the charger does not detect a proper battery connection, the digital display shows CONNECT CLAMPS.

Check the battery connections and make sure the contact points are clean.

WARNING CLAMPS REVERSED

If the charger detects reversed battery connections, the digital display shows WARNING CLAMPS REVERSED.

Disconnect the charger from AC power, correct the battery connections, and reconnect the charger.

Charge Completion and Maintain Mode

When charging is complete, the SP1298 automatically enters maintain mode.

Charge Completion Indicators

Maintain Mode Operation

The charger monitors the battery and supplies charging current when necessary to keep it fully charged.

Maintain mode is intended for healthy 12V batteries.

Long-Term Battery Maintenance

The charger can maintain a healthy battery over extended periods.

However, the battery and charging process should still be checked occasionally.

Battery defects, vehicle electrical problems, improper connections, or excessive current draw may interfere with maintenance operation.

The charger is not recommended for industrial applications.

Maintain Mode Abort Protection

If the charger must provide its maximum maintenance current continuously for 12 hours, it enters Abort mode.

This condition may occur because:

• An electrical load is draining the battery.
• The battery is defective.
• The battery cannot retain its charge.

If the charger enters Abort mode, remove connected electrical loads and have the battery checked if the problem continues.

Aborted Charge Mode

The SP1298 automatically stops charging if the charging process cannot be completed normally.

What Happens When Charging Is Aborted?

• The charger stops supplying output current.
• The green LED begins flashing.
• The digital display shows CHARGE ABORTED-BAD BATTERY.

Possible Causes of Aborted Charging

Charging may be aborted if:

• The battery is severely sulfated.
• The battery has a shorted cell.
• The battery is too large for the charger.
• A bank of batteries cannot be charged within the allowed time.
• The battery cannot retain its charge.
• An excessive electrical load requires continuous maximum maintenance current for 12 hours.

Resetting the Charger After an Aborted Charge

1. Disconnect the charger from the AC outlet.
2. Wait a few moments.
3. Reconnect the charger to the AC outlet.

If the charging problem continues, have the battery checked or use a charger appropriate for the battery size.

Cooling Fan Operation

The Schumacher SP1298 includes a built-in cooling fan.

The fan may operate while the charger is charging a battery.

This is normal operation.

Keep the area around the charger free from obstructions so the fan can operate efficiently.

Digital Display Messages

The SP1298 displays charging, battery selection, connection, and fault messages.

Display Message Guide

SELECT BATTERY TYPE

The charger is waiting for the user to select the correct battery type.

The green LED remains off during this selection.

LITHIUM ION BATTERY-PRESS AGAIN FOR LEAD-ACID

This message indicates that the lithium-ion charging setting has been selected.

Pressing the Battery Type button again changes to the lead-acid setting.

LEAD-ACID BATTERY-PRESS AGAIN FOR LITHIUM ION

This message indicates that the lead-acid charging setting has been selected.

Pressing the Battery Type button again changes to the lithium-ion setting.

CONNECT CLAMPS TO LITHIUM ION BATTERY

The charger is connected to AC power, and the lithium-ion setting is selected, but the charger is not detecting a battery connection.

CONNECT CLAMPS TO LEAD ACID BATTERY

The charger is connected to AC power, and the lead-acid setting is selected, but the charger is not detecting a battery connection.

WARNING CLAMPS REVERSED

The charger has detected reversed battery connections.

Disconnect AC power before correcting the connections.

ANALYZING BATTERY

The charger is analyzing the connected battery before or during the start of charging.

The green LED remains solid during battery analysis.

CHARGING 12V – XX%

The charger is properly connected and charging a 12V battery.

The percentage indicates charging progress.

FULLY CHARGED AUTO MAINTAINING

The battery is fully charged, and the charger has entered automatic maintain mode.

The green LED pulses.

CHARGE ABORTED-BAD BATTERY

Charging has been aborted because the battery cannot be charged normally or a specified charging fault has occurred.

The green LED flashes.

BATTERY DISCONNECTED

The charger has lost its connection to the battery after charging started.

Check the battery and charger connections.

Troubleshooting Guide

The following troubleshooting procedures cover electrical power problems, battery connections, charger indicators, and aborted charging.

Schumacher SP1298 Troubleshooting Table

Schumacher SP1298 Will Not Turn On

If the charger does not start when connected:

Check the AC Outlet

1. Confirm that the charger is connected to a grounded electrical outlet.
2. Check whether the outlet has power.
3. Inspect the fuse or circuit breaker supplying the outlet.

Check the Power Cord

Inspect the power cord and extension cord connections for loose-fitting plugs.

Do not operate the charger with a damaged power cord or plug.

Battery Clamps Do Not Spark

The SP1298 includes an automatic startup protection feature.

The charger does not supply current to the battery clamps until a battery is properly connected.

The absence of sparks when the clamps touch is normal behavior.

The clamps must still never be intentionally touched together.

Green LED Is Solid During Battery Analysis

If the green LED is solid and the display shows ANALYZING BATTERY, the charger is checking the connected battery’s condition.

This is normal operation.

Green LED Flashes and Charging Is Aborted

A flashing green LED and the message CHARGE ABORTED-BAD BATTERY indicate that charging has stopped.

Battery Is Sulfated

The battery may be sulfated and unable to accept a normal charge.

Reset the charger by briefly disconnecting it from AC power.

Battery Is Too Large

If the battery is too large for the charger, use a battery charger with a higher amperage rating.

Battery Voltage Remains Below 10V

If the battery voltage remains below 10V after two hours of charging, have the battery checked.

Display Shows CONNECT CLAMPS

The CONNECT CLAMPS message indicates that the charger is not detecting a proper battery connection.

Possible Causes

• Battery clamps are not making good electrical contact.
• The battery or chassis connection is poor.
• The ring terminal connector in-line fuse is defective.

Troubleshooting Steps

1. Check the battery clamp connections.
2. Check the battery and chassis contact points.
3. Clean the contact points if necessary.
4. If using the ring terminal connector, check the in-line fuse.
5. Replace the fuse if defective.

Display Shows WARNING CLAMPS REVERSED

This message indicates that the battery clamps are connected with reversed polarity.

Correcting the Connections

1. Disconnect the charger from AC power.
2. Check the positive and negative clamp positions.
3. Correct the battery connections.
4. Reconnect the charger to the AC outlet.

Display Shows BATTERY DISCONNECTED

The BATTERY DISCONNECTED message indicates that the charger lost its connection to the battery after charging started.

Check the battery clamps and charging connections.

Make sure the connections are clean and secure.

Maintenance and Cleaning Instructions

Basic cleaning and proper cable care help keep the SP1298 in good condition.

Cleaning the Battery Clamps

After each charging session:

1. Disconnect the charger from AC power.
2. Disconnect the battery clamps.
3. Wipe away battery fluid or residue from the clamps.
4. Clean the clamps to prevent corrosion.

Cleaning the Charger Housing

Occasionally clean the outer housing using a soft cloth.

This helps maintain the finish and prevent corrosion.

Cable Maintenance

Coil the AC power cord and DC charging cables neatly when storing the charger.

This helps prevent accidental damage to the cables and charger.

Storage Instructions

The SP1298 should be stored indoors in a cool, dry location.

Proper Storage Procedure

1. Disconnect the charger from AC power.
2. Disconnect all battery connections.
3. Clean the charger and battery clamps.
4. Coil the power and charging cables neatly.
5. Store the charger in an upright position.
6. Keep the charger in a cool, dry indoor location.

Battery Clamp Storage Precautions

Do not store the clamps:

• Clipped together.
• Attached to metal objects.
• Clipped around electrical cables.
• Attached to the charger’s cables.

Replacement Parts and Accessories

The Schumacher SP1298 uses replaceable quick-connect charging accessories.

Replacement Parts

Use replacement components approved for the Schumacher SP1298.

One-Year Limited Warranty

The Schumacher SP1298 is covered by a one-year limited warranty from Schumacher Electric Corporation.

Warranty Coverage

Warranty Repair or Replacement

If the charger develops a covered defect, Schumacher may repair the unit or replace it with a new or reconditioned unit.

The manufacturer determines whether repair or replacement is appropriate.

The purchaser must provide proof of purchase and pay shipping charges in advance when sending the charger for warranty service.

Warranty Exclusions

The limited warranty may be void if the charger:

• Is misused.
• Is handled carelessly.
• Is repaired or modified by an unauthorized person.
• Is resold through an unauthorized retailer.

Accessories not manufactured and approved by Schumacher Electric Corporation are not covered by the limited warranty.

Warranty Registration

The charger can be registered online at:

www.batterychargers.com

The warranty registration card should be submitted within 30 days of purchase.

Keep the original purchase receipt because it is required for warranty claims.

Customer Support and Repair Information

Schumacher Electric Corporation provides customer assistance for troubleshooting, repairs, and product returns.

Customer Support Details

Repair and Return Procedure

1. Contact Schumacher Customer Service at 1-800-621-5485.
2. Describe the charging or operating problem.
3. Follow the troubleshooting assistance provided.
4. Request a Return Merchandise Authorization (RMA) number if repair or return is necessary.
5. Do not ship the charger until an RMA number has been issued.

The warranty registration mailing address must not be used for repair shipments.

Frequently Asked Questions

1. What batteries can the Schumacher SP1298 charge?

The Schumacher SP1298 is designed for compatible 12V lead-acid and 12V lithium iron phosphate (LiFePO4) rechargeable batteries with a recommended capacity of 22–59Ah. The correct battery chemistry must be selected using the Battery Type button before charging.

2. How many amps does the Schumacher SP1298 provide?

The SP1298 provides a rated charging output of 6A at 12V DC. It operates from a grounded 120V AC electrical outlet.

3. How do I select lithium or lead-acid mode on the Schumacher SP1298?

Use the Battery Type button to select the battery chemistry. The manual identifies one button press for lead-acid and two for lithium-ion when selecting from the initial prompt. The display confirms the selection and provides a message indicating how to switch to the other type. The charger remembers the selected battery type.

4. What does a flashing green light mean on the Schumacher SP1298?

A flashing green LED indicates that charging has been aborted. The digital display shows CHARGE ABORTED-BAD BATTERY. Possible causes include a sulfated battery, an oversized battery, or a battery that remains below 10V after two hours of charging. The battery should be checked according to the troubleshooting instructions.

5. What does a pulsing green light mean on the Schumacher SP1298?

A pulsing green LED means the connected battery is fully charged and the charger has entered automatic maintain mode. The display shows FULLY CHARGED AUTO MAINTAINING. The charger monitors the battery and supplies charging current when necessary to keep it charged.

6. Can the Schumacher SP1298 stay connected to a battery for long-term maintenance?

Yes. The SP1298 includes automatic maintain mode, which allows a healthy 12V battery to remain charged over an extended period. The manufacturer recommends checking the battery and charging process occasionally because battery problems, improper connections, or excessive electrical loads can affect operation.

7. Why does the Schumacher SP1298 display CONNECT CLAMPS?

The CONNECT CLAMPS message indicates that the charger is not detecting a proper battery connection. Check the battery clamps, battery terminals, and chassis connections. If the ring terminal quick-connect is being used, a defective in-line fuse may also cause this message.

8. Can the Schumacher SP1298 charge a battery through a vehicle’s 12V accessory outlet?

Yes. The SP1298 includes a 12V accessory plug quick-connect for charging or maintaining a compatible battery through the vehicle’s accessory outlet. The outlet must permit charging current to pass through it. If the ignition key must be turned on to activate the outlet, the key may be turned without starting the engine, as described in the vehicle owner’s manual.
