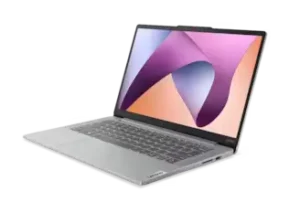

Lenovo IdeaPad Slim 5 14IIL05

The Lenovo IdeaPad 5 and IdeaPad Slim 5 are laptop computers available in 14-inch and 15.6-inch configurations. This product family also includes the Lenovo Ducati 5. The computers feature Full HD displays, built-in cameras with privacy covers, integrated microphones, stereo speakers, wireless networking, keyboards, touchpads, and connections for external devices.

The laptops provide USB Type-A and USB-C connections, HDMI output, an SD card reader, and a 3.5 mm combo audio jack. Available power connections, USB standards, battery capacities, and some hardware functions vary between models.

The IdeaPad 5 and Slim 5 support Windows 10 features, including local and Microsoft accounts, wireless networking, Windows Hello fingerprint authentication, power management, system recovery, and Windows updates. Lenovo Vantage or Lenovo PC Manager may also be installed to manage hardware settings, updates, diagnostics, and warranty information.

The following instructions cover hardware components, technical specifications, initial Windows setup, connections, touchscreen controls, battery charging, BIOS settings, recovery, troubleshooting, safety, and customer support.

Supported Models and Machine Types

The IdeaPad Slim 5 (14″, 05) and IdeaPad Slim 5 (15″, 05) are also included in the product family covered by these instructions.

Individual components and features depend on the purchased configuration.

Technical Specifications

Display and Hardware Specifications

The installed processor can be identified by right-clicking the Windows Start button and selecting System.

Dimensions and Weight-Related Measurements

Battery and Power Specifications

The 45W and 95W power adapters apply to selected configurations.

Battery capacities are typical values measured under specified test conditions.

Operating Environment

Parts and Components

Front Components

Camera Privacy Cover

The integrated camera includes a physical cover operated by a slider.

Move the slider to cover or uncover the camera lens.

The cover provides additional privacy when the camera is not being used.

Camera Indicator

When the camera indicator light is on, the camera is in use.

Optional Touchscreen

Selected models support multi-touch input through the display.

Touchscreen operation depends on the computer configuration.

Keyboard, Touchpad, Speakers and Power Button

The keyboard arrangement differs between the 14-inch and 15.6-inch models.

The 15.6-inch models include a dedicated numeric keypad.

Base Components

Fingerprint Reader

Selected configurations include a fingerprint reader integrated into the Power button.

The fingerprint reader supports Windows sign-in after fingerprint enrollment.

Touchpad

The built-in touchpad provides functions similar to a traditional mouse.

It also supports multi-touch gestures.

Power and Fingerprint Indicator Lights

Left-Side Ports and Connections

The left-side hardware arrangement includes power, charging, audio, video, and system controls.

Left-Side Connector Guide

Power Connector and USB-C Charging

Some IdeaPad 5 (14″, 05) and IdeaPad Slim 5 (14″, 05) configurations do not include a separate power connector.

These configurations use USB-C for charging.

The power connection must match the actual laptop configuration.

USB-C Connector

The USB-C connector supports several functions, depending on the model.

HDMI Connector

The HDMI connector supports compatible digital audio/video equipment, including external monitors and televisions.

Combo Audio Jack

The 3.5 mm combo audio jack accepts compatible headphones or headsets with a four-pole plug.

Standalone external microphones are not supported through this connector.

For a headset with microphone functionality, a compatible single-plug headset is required.

Right-Side Ports and Connections

The right-side layout includes an SD card slot and USB Type-A connections.

Right-Side Connector Guide

The Novo button and system status indicator are positioned differently on the 14-inch and 15.6-inch laptop diagrams.

SD Card Slot

The SD card slot accepts SD cards and MultiMediaCards for storing and transferring data.

USB Type-A Ports

The USB Type-A ports support compatible devices such as:

• USB keyboards
• USB mice
• USB storage drives
• USB printers

Always-On USB Charging

The Always-On USB connector can charge compatible external devices when the computer is:

• Turned off
• In Sleep mode
• In Hibernation mode

The feature can be enabled or disabled in BIOS, and through Lenovo Vantage where supported.

USB Specifications and Transfer Rates

USB features differ between the 14-inch and 15.6-inch computers.

USB Standard Data Rate Reference

Actual transfer rates are affected by the computer configuration, connected peripheral, file characteristics, and operating environment.

The USB-C connector’s listed transfer rate in this product guide is up to 5 Gbps.

Charging and System Status Indicators

Battery Charging Light

System Status Light

The system status indicator described in the side diagrams is separate from the charging indicator and the Power button light.

Important Safety Instructions

The laptop contains electrical components and rechargeable batteries that must be used according to Lenovo’s safety precautions.

General Safety

• Keep liquids away from the computer and power adapter.
• Do not use cracked, damaged, or overheated power cables.
• Keep ventilation openings unobstructed.
• Do not place heavy objects on the display.
• Avoid dropping, twisting, striking, or shaking the laptop.
• Do not use the laptop when internal components are exposed.
• Disconnect power before performing an authorized service procedure.
• Do not operate or charge the computer near flammable materials.

Overheating and Ventilation

The computer and power adapter can become hot during operation.

Prolonged skin contact with hot surfaces can cause burns.

Do not place the laptop on soft materials that block cooling openings, such as beds, sofas, or carpets.

Air entering the computer must not exceed 35°C (95°F).

Power Adapter Safety

Use a Lenovo-supplied or manufacturer-approved compatible power adapter.

Do not:

• Wrap the cable tightly around the adapter.
• Cover the adapter with clothing during use.
• Operate an adapter showing corrosion or heat damage.
• Expose the adapter or cable to liquids.

Battery Safety

The rechargeable battery must not be opened, disassembled, crushed, punctured, short-circuited, or exposed to water or fire.

A damaged or leaking battery must no longer be used.

The built-in rechargeable battery must be replaced only by a Lenovo-authorized technician or repair facility.

Electrical Safety

Do not connect or disconnect equipment during an electrical storm.

Use correctly wired electrical outlets.

When disconnecting non-USB external devices, wait at least five seconds after the computer has shut down.

Display Safety

The LCD contains glass and can break after an impact.

If liquid from a broken LCD contacts the skin or eyes, rinse the affected area with water for at least 15 minutes. Seek medical assistance if symptoms remain.

Headphone Safety

Excessive headphone volume can damage hearing.

Use compatible headphones and maintain a suitable listening level.

Before First Use

The computer should be prepared and connected to electrical power before initial setup.

Initial Preparation

1. Place the laptop on a stable surface.
2. Keep all cooling openings clear.
3. Prepare the supplied AC power adapter and power cord.
4. Connect the appropriate power connector.
5. Plug the adapter into a suitable electrical outlet.
6. Press the Power button.
7. Follow the Windows setup instructions.

Windows 10 Initial Setup

Windows 10 requires at least one user account.

The account can be a local Windows account or a Microsoft account.

Local Windows Account

A local account is created for a specific Windows device.

A password is recommended to prevent unauthorized access.

Microsoft Account

A Microsoft account can be used to sign in to Windows and supported Microsoft services.

Benefits include:

• Access to supported Microsoft services through a single account
• Synchronization of selected settings between Windows devices

Switching to a Microsoft Account

1. Open Start > Settings > Accounts.
2. Select Sign in with a Microsoft account instead.
3. Enter the Microsoft account information.
4. Follow the instructions to complete the sign-in process.

Internet access is required when using a Microsoft account on the device for the first time.

Adding Another Windows User

An administrator account is required to add users.

1. Open Start > Settings > Accounts > Family & other users.
2. Select Add someone else to this PC.
3. Enter the required account information.

Windows Hello Fingerprint Setup

Selected models support fingerprint authentication.

Enrolling a Fingerprint

1. Open Start > Settings > Accounts > Sign-in options.
2. Select Windows Hello Fingerprint.
3. Choose Set up > Get started.
4. Follow the enrollment instructions.
5. Create a Windows PIN when prompted.

The PIN provides an alternative sign-in method when a fingerprint cannot be recognized.

More than one fingerprint can be enrolled.

For local Windows accounts, a password must be configured before fingerprint enrollment.

Windows Desktop and Controls

Windows provides access to programs, system settings, file locations, and notifications.

Opening the Start Menu

Click Start or press the Windows key.

Opening Control Panel

Open Start > Windows System > Control Panel, or find Control Panel using Windows Search.

Lenovo Vantage and Lenovo PC Manager

Lenovo Vantage and Lenovo PC Manager provide computer management functions.

Available Functions

Opening Lenovo Vantage

1. Open Windows Search.
2. Search for Lenovo Vantage or Lenovo PC Manager.
3. Select the matching application.

If Lenovo Vantage is not installed, it can be obtained from Microsoft Store.

Connecting to WiFi

The computer includes wireless LAN connectivity.

How to Connect to a Wireless Network

1. Select the network icon in the Windows notification area.
2. Choose an available WiFi network.
3. Select Connect.
4. Enter the network security key if requested.

If no network appears, check that Airplane Mode is turned off.

Forgetting a WiFi Network

If a wireless network password has changed, remove the saved connection before entering the new password.

1. Open Start > Settings > Network & Internet > Wi-Fi.
2. Select Manage known networks.
3. Choose the saved network.
4. Select Forget.

Turning Airplane Mode On or Off

1. Open Action Center from the Windows notification area.
2. Select Airplane mode.

Select Expand if the Airplane Mode control is not immediately visible.

Keyboard Hotkeys and Function Keys

The keyboard includes dedicated shortcuts for common functions.

Hotkey Functions

The keyboard backlight and voice assistant hotkeys must be used together with the Fn key.

Hotkey Mode

Hotkey Mode changes how shared function keys operate.

Press Fn + Esc to change Hotkey Mode.

Numeric Keypad

The 15.6-inch models include a dedicated numeric keypad.

Press Num Lock to enable or disable numeric keypad input.

Touchscreen Gestures

Selected configurations support multi-touch screen operation.

Touchscreen Gesture Guide

Gesture availability depends on the application being used.

Battery Charging and Power Management

The laptop uses a rechargeable battery whose capacity depends on the model.

Checking Battery Status

Select the battery icon in the Windows notification area.

Windows displays the remaining charge percentage and available power settings.

Charging the Battery

1. Connect the computer to its AC power adapter.
2. Connect the adapter to an electrical outlet.
3. Allow the battery to charge.

A full charge generally takes approximately two to four hours.

Charging time depends on battery capacity, temperature, and computer activity.

Recommended Charging Temperature

The recommended battery charging temperature is 10–35°C (50–95°F).

Battery Recharge Behavior

To help preserve battery life, the computer does not start another charging cycle when the remaining charge is above 95%.

Checking Battery Temperature

Using Lenovo Vantage:

1. Open Lenovo Vantage.
2. Select Hardware Settings > Power.
3. Find Power Status.
4. Select Show Details.

Using Lenovo PC Manager, open System hardware > Battery.

Power Button and Power Plans

Changing Power Button Behavior

By default, pressing the Power button puts the computer into Sleep mode.

To change this behavior:

1. Right-click the battery icon in the Windows notification area.
2. Select Power Options.
3. Select Choose what the power button does.
4. Configure the preferred action.

Changing a Power Plan

1. Right-click the battery icon.
2. Select Power Options > Change plan settings.
3. Adjust the available power-saving options.

Performance Modes

The computer supports different performance modes that affect performance and power consumption.

Switching Performance Modes

Press Fn + Q to cycle through the available performance modes.

Novo Button Menu

The Novo button provides access to functions available before Windows starts.

Available Novo Button Options

Opening the Novo Button Menu

1. Turn off the computer.
2. Open the laptop display.
3. Press the Novo button.

Alternatively, turn off the computer and press Fn + Power.

UEFI/BIOS Setup

UEFI/BIOS firmware initializes computer hardware and starts the operating system.

Entering BIOS

1. Turn on or restart the computer.
2. When the Lenovo logo appears, press F2 repeatedly.

If Hotkey Mode is enabled, use Fn + F2.

Changing the Boot Order

1. Open BIOS Setup.
2. Select the Boot menu.
3. Locate Boot Priority Order.
4. Arrange the startup devices according to the on-screen instructions.

Temporary Boot Device Selection

Press F12 or Fn + F12 repeatedly when the Lenovo logo appears.

Changing Hotkey Mode in BIOS

1. Open BIOS Setup.
2. Select Configuration > Hotkey Mode.
3. Choose Enabled or Disabled.
4. Select Exit > Exit Saving Changes.

Enabling or Disabling Always-On USB

1. Open BIOS Setup.
2. Select Configuration > Always On USB.
3. Choose Enabled or Disabled.
4. Save the changes.

BIOS Password and Security Settings

The laptop supports several UEFI/BIOS password types.

BIOS Password Types

Setting an Administrator Password

1. Open BIOS Setup.
2. Select Security > Set Administrator Password.
3. Enter an alphanumeric password.
4. Confirm the password.
5. Select Exit > Exit Saving Changes.

Important: Lenovo cannot reset a forgotten administrator password. The system board must be replaced through authorized service, and charges apply.

Changing or Removing an Administrator Password

1. Open BIOS Setup with the current administrator password.
2. Select Security > Set Administrator Password.
3. Enter the current password.
4. Enter and confirm a new password.
5. Save the changes.

To remove the password, leave the new password fields empty and press Enter.

Removing the administrator password also removes the user password.

Setting a User Password

An administrator password must be configured first.

1. Open BIOS Setup.
2. Select Security > Set User Password.
3. Enter a password different from the administrator password.
4. Confirm the password.
5. Save the changes.

Enabling a Power-On Password

1. Open BIOS Setup.
2. Select Security > Power on Password.
3. Change the setting to Enabled.
4. Save the changes.

When enabled, Windows startup requires the administrator or user password.

Setting a Hard Disk Password

1. Open BIOS Setup.
2. Select Security > Set Hard Disk Password.
3. Follow the instructions to set master and user hard disk passwords.
4. Save the changes.

The master and user hard disk passwords must be configured together.

Important: If a hard disk password is forgotten, Lenovo cannot reset it or recover the protected data. Replacement of the storage drive through authorized service is required.

Changing or Removing Hard Disk Passwords

1. Open BIOS Setup.
2. Select Security.
3. Choose the master or user hard disk password option.
4. Follow the instructions to change or remove the password.
5. Save the changes.

Removing the master password also removes the user hard disk password.

The user hard disk password cannot be removed independently.

Windows 10 System Recovery

Windows 10 provides several recovery options.

Choosing a Recovery Method

Important: Some recovery operations delete applications, settings, or personal information. Important files should be backed up before recovery.

Creating a System Restore Point

1. Search Windows for Create a restore point.
2. Open the matching result.
3. Select the System Protection tab.
4. Select Create.

System protection must be enabled on the system drive.

Restoring from a Restore Point

1. Search Windows for Recovery.
2. Select Open System Restore.
3. Select Next.
4. Choose a restore point.
5. Select Next > Finish.

The Scan for affected programs option can be used to review associated software changes.

System Restore does not affect personal data.

Resetting Windows 10

1. Open Start > Settings > Update & Security > Recovery.
2. Locate Reset this PC.
3. Select Get started.
4. Choose the required option.

Follow the on-screen instructions to complete the reset.

Creating a Windows Recovery USB Drive

A USB recovery drive can be used when Windows does not start.

Creating the Recovery Drive

1. Search Windows for Create a recovery drive.
2. Open the matching application.
3. Select Back up system files to the recovery drive.
4. Select Next.
5. Connect a USB drive.
6. Select the drive.
7. Select Next > Create.

Important: Existing files on the USB drive will be deleted.

Restoring Windows Using a Recovery Drive

1. Connect the recovery drive to the computer.
2. Restart the computer.
3. Start from the recovery drive.
4. Select Troubleshoot.
5. Choose the required recovery option.

For restoration to a previous restore point, select Advanced Options > System Restore.

For recovery from the USB drive, select Recover from a drive.

Warning: Recovering from a drive deletes personal files stored on the computer.

Troubleshooting Guide

Common Problems and Recommended Actions

Computer Stops Responding

Press and hold the Power button until the computer turns off.

Restart the computer afterward.

Liquid Spilled on the Laptop

1. Disconnect the AC power adapter.
2. Turn off the computer immediately.
3. Wait until the liquid has completely dried before turning the laptop on again.

Do not turn the computer upside down to drain liquid.

If keyboard drainage holes are present, liquid drains through those openings.

Finding Drivers and BIOS Updates

Drivers, firmware, and UEFI/BIOS updates are available through:

• Lenovo Vantage
• Lenovo PC Manager
• https://support.lenovo.com

Changing the Boot Mode

The BIOS supports UEFI and Legacy Support boot modes.

The documented operating system requirements are:

The boot mode can be changed in the BIOS Boot menu.

Cleaning and Maintenance

Regular care helps protect the laptop from heat buildup, physical damage, and electrical problems.

Ventilation Maintenance

• Check the exterior for dust accumulation.
• Remove dust from ventilation openings.
• Keep airflow passages clear.
• Avoid operating the laptop on soft surfaces that block cooling.
• Do not operate the computer inside enclosed furniture where heat can accumulate.

General Handling

Avoid exposing the computer to strong impacts, excessive vibration, pressure, or twisting.

Keep the computer away from liquids.

Storage and Transportation

Carrying the Computer

Use a suitable padded carrying case.

Avoid placing the laptop in an overcrowded bag or suitcase.

Before packing the laptop, shut it down or place it in Sleep or Hibernation mode.

Long-Term Battery Storage

For extended storage:

• Keep the battery charged to approximately 30–50%.
• Store the computer at room temperature.
• Recharge the battery approximately once per year.

Ergonomic Recommendations

Customer Replaceable Units

Lenovo identifies the following customer-replaceable components.

These components can be replaced according to the applicable Lenovo instructions.

Returning Replaced Parts

When Lenovo requires the defective part to be returned, return instructions and shipping materials are supplied.

The defective component must be returned within 30 days of receiving the replacement when a return is required.

Charges may apply if the defective part is not returned.

Warranty Information

Warranty coverage depends on the applicable Lenovo Limited Warranty and the computer’s specific configuration.

Warranty Support Services

Applicable warranty services may include:

• Hardware problem diagnosis
• Qualifying hardware repair
• Applicable engineering changes

Warranty Documentation

Warranty conditions are described in the Lenovo Safety and Warranty Guide.

The Lenovo Limited Warranty is available at:

https://www.lenovo.com/warranty/llw_02

Additional service options are available at:

https://www.lenovo.com/services

Availability varies by country or region.

Recycling and Environmental Information

The laptop and its batteries must be disposed of according to applicable environmental regulations.

Electrical equipment displaying the WEEE symbol must be handled through suitable recycling and collection programs.

Recycling Resources

Customer Support Information

Lenovo provides product documentation, software downloads, drivers, diagnostic tools, warranty details, and technical support.

Support Resources

Before Contacting Support

Prepare the following information:

Frequently Asked Questions

1. How do I enter BIOS on the Lenovo IdeaPad 5 or Slim 5?

Turn on or restart the computer and press F2 repeatedly when the Lenovo logo appears. If Hotkey Mode is enabled, use Fn + F2. The BIOS Setup Utility provides boot, security, and other supported system settings.

2. How long does the Lenovo IdeaPad 5 battery take to charge?

The battery normally takes approximately two to four hours to charge fully. Charging time depends on battery capacity, temperature, and whether the laptop is being used. The recommended charging temperature is between 10°C and 35°C.

3. Does the Lenovo IdeaPad 5 support USB-C charging?

Selected 14-inch IdeaPad 5 and Slim 5 models use USB-C as their charging connector. Other configurations include a separate power connector. The correct connection depends on the specific laptop model.

4. How do I turn on the Lenovo IdeaPad 5 keyboard backlight?

Use the keyboard backlight hotkey together with Fn. The shortcut turns the keyboard illumination on or off or changes its brightness. Backlit keyboard availability depends on the computer configuration.

5. How do I change the Lenovo IdeaPad 5 performance mode?

Press Fn + Q to switch between the supported performance modes. Each mode changes the balance between computer performance and power consumption.

6. How do I reset Windows 10 on the Lenovo IdeaPad 5?

Open Start > Settings > Update & Security > Recovery, then select Get started under Reset this PC. Choose Keep My Files or Remove Everything and follow the instructions. Back up important files before resetting Windows.

7. Why is the Lenovo IdeaPad 5 not charging when the battery is above 95%?

The computer is designed not to start a new charging cycle when the remaining charge is above 95%. This behavior helps preserve battery life.

8. Where can I download Lenovo IdeaPad 5 drivers and BIOS updates?

Drivers, firmware, and BIOS updates can be obtained through Lenovo Vantage, Lenovo PC Manager, or the official Lenovo Support website at https://support.lenovo.com.
