6 QT Touchscreen Air Fryer 90131

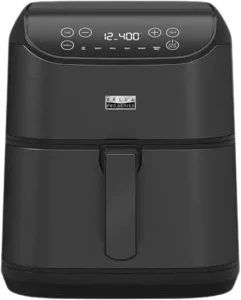

BELLA PRO Series 6 QT Touchscreen Air Fryer 90131

The BELLA PRO Series 6 QT Touchscreen Air Fryer is a 6-quart countertop cooking appliance with digital touchscreen controls and six cooking presets: Air Fry, Roast, Broil, Bake, Reheat, and French Fries. The cooking temperature can generally be adjusted from 170°F to 400°F, with preset-specific limits, while cooking time can be changed in one-minute increments. Bella-Pro-Series-6QT-Touchscree…

The air fryer uses a removable frying basket and non-stick crisping tray. During cooking, hot air circulates around the food, and the manual recommends leaving enough room for air movement, avoiding overfilling, and checking or shaking food during cooking when appropriate. Bella-Pro-Series-6QT-Touchscree… Bella-Pro-Series-6QT-Touchscree…

Product Overview

The BELLA PRO 6 QT Air Fryer combines touchscreen operation with adjustable temperature and time settings. Users can choose a preset and cook with its default settings or manually change the temperature and cooking duration.

The six built-in functions are:

• Air Fry
• Roast
• Broil
• Bake
• Reheat
• French Fries Bella-Pro-Series-6QT-Touchscree…

The appliance is intended for household use only and operates from a 120V AC electrical outlet. Bella-Pro-Series-6QT-Touchscree… Bella-Pro-Series-6QT-Touchscree…

Parts and Components

The product diagram on page 7 of the manual identifies the main air fryer components. Bella-Pro-Series-6QT-Touchscree…

The illustration also shows the crisping tray sitting inside the removable frying basket and the basket sliding into the lower front of the air fryer.

Touchscreen Control Guide

The control panel includes:

• TIME control
• TEMP control
• MENU
• +
• –
• START/PAUSE
• Digital time and temperature display
• Six preset indicators Bella-Pro-Series-6QT-Touchscree…

START/PAUSE Button

When the power cord is first plugged into an outlet, the red START/PAUSE button flashes.

Pressing START/PAUSE wakes the touchscreen and illuminates the full control panel. Bella-Pro-Series-6QT-Touchscree…

After a cooking program has been selected, pressing START/PAUSE begins cooking.

MENU Button

Press MENU to move through the available presets.

When the required preset is illuminated, press START/PAUSE to begin. Bella-Pro-Series-6QT-Touchscree…

Time Adjustment

Select the time control and press + or – to change cooking time.

Time changes in one-minute increments. Holding either button changes the value more quickly. Bella-Pro-Series-6QT-Touchscree…

Temperature Adjustment

Select TEMP and use + or – to change cooking temperature.

Temperature changes in 10°F increments. The general adjustable range is 170°F to 400°F, although some presets have a narrower range. Bella-Pro-Series-6QT-Touchscree…

Cooking Presets and Default Settings

These are the preset values printed in the touchscreen-control table. Bella-Pro-Series-6QT-Touchscree…

The manual advises checking thick or dense food after the preset time expires and using a meat thermometer when necessary. Additional cooking can be done in short intervals until the food reaches the required doneness. Bella-Pro-Series-6QT-Touchscree…

Important Safety Instructions

The air fryer generates substantial heat and escaping steam during operation.

Important instructions include:

• Do not touch hot surfaces directly; use handles, oven mitts, or potholders.
• Do not immerse the appliance, plug, or cord in water.
• Unplug it when not in use and before cleaning.
• Let the appliance cool before removing components or cleaning.
• Do not operate the appliance with a damaged cord or plug.
• Do not use accessories not recommended by the manufacturer.
• Do not use the air fryer outdoors.
• Keep the power cord away from hot surfaces and countertop edges.
• Do not place the appliance on or near a hot burner or inside a heated oven.
• Use extreme care when handling hot oil or other hot liquids.
• Use the appliance only for its intended purpose.
• Install the crisping tray before placing food inside.
• Make sure the frying basket is fully inserted while the air fryer is operating. Bella-Pro-Series-6QT-Touchscree… Bella-Pro-Series-6QT-Touchscree…

Basket Safety Interlock

The manual states that the air fryer will not operate unless the frying basket is fully closed and correctly inserted. Bella-Pro-Series-6QT-Touchscree…

Hot Surface Precautions

The appliance remains hot after it has been switched off.

Owners should:

• Use oven mitts when handling the hot basket or tray.
• Let metal components cool before cleaning.
• Keep the top of the appliance clear while it is operating or hot.
• Avoid steam escaping from the rear air outlet. Bella-Pro-Series-6QT-Touchscree…

Clearance Around the Air Fryer

Keep at least 4 inches of clearance from walls and other objects while the air fryer is operating.

The rear and side air inlets and outlets must remain unobstructed. Bella-Pro-Series-6QT-Touchscree…

Do Not Overfill the Basket

Overfilling can interfere with cooking and may damage the appliance or create a risk of injury. Bella-Pro-Series-6QT-Touchscree…

Do Not Boil Water or Deep-Fry

The manual specifically states that this appliance:

• Should not be used to boil water
• Should never be used for deep frying Bella-Pro-Series-6QT-Touchscree…

Polarized Plug

The appliance uses a polarized plug with one blade wider than the other.

If it does not fit the outlet:

1. Reverse the plug.
2. Try again.
3. If it still does not fit, contact a qualified electrician.

The plug should not be altered. Bella-Pro-Series-6QT-Touchscree…

Extension Cord Instructions

If a longer cord or extension cord is used:

• Its electrical rating should be at least equal to the appliance’s rating.
• A grounded appliance should use a three-wire grounding extension cord.
• Arrange the cord so it does not hang over a counter or table where it could be pulled or create a tripping hazard. Bella-Pro-Series-6QT-Touchscree…

Countertop Protection

The manual recommends placing a non-plastic coaster or placemat between the air fryer and finished countertop or furniture surfaces.

This can help prevent surface darkening, stains, or permanent marks caused by plasticizer migration. Bella-Pro-Series-6QT-Touchscree…

Electrical Power

The air fryer should preferably run on a separate electrical circuit.

An overloaded circuit shared with other appliances may prevent it from operating correctly. Bella-Pro-Series-6QT-Touchscree…

Before Using the Air Fryer for the First Time

1. Remove Packaging

Remove all packing materials and labels from inside and outside the appliance.

Check carefully around and underneath the frying basket for remaining packaging. Bella-Pro-Series-6QT-Touchscree…

2. Remove the Frying Basket

Firmly hold the basket handle and pull the basket out of the air fryer.

Place it on a flat, clean work surface. Bella-Pro-Series-6QT-Touchscree…

3. Wash the Basket and Crisping Tray

Wash both pieces in hot, soapy water before first use. Bella-Pro-Series-6QT-Touchscree…

4. Clean the Air Fryer Body

Do not immerse the main appliance in water.

Wipe the body with a damp cloth and dry all components thoroughly. Bella-Pro-Series-6QT-Touchscree…

5. Check the Crisping Tray Rubber Tips

The crisping tray uses four rubber tips around its sides to help it fit securely in the frying basket.

Make sure all four are attached before use. If one becomes detached, slide it back onto its tray tab. Bella-Pro-Series-6QT-Touchscree…

Odor During First Use

A slight odor may occur during initial operation.

The manual states that this is normal and should not affect the flavor of food. Bella-Pro-Series-6QT-Touchscree…

How to Use the BELLA PRO 6 QT Air Fryer

Step 1: Position the Appliance

Place the air fryer on a:

• Flat surface
• Heat-resistant surface
• Location near an electrical outlet
• Area with adequate clearance around the air vents Bella-Pro-Series-6QT-Touchscree…

Step 2: Remove the Frying Basket

Pull the basket out using its cool-touch handle.

Place it on a clean, flat work area. Bella-Pro-Series-6QT-Touchscree…

Step 3: Install the Crisping Tray

Put the crisping tray into the bottom of the basket. Bella-Pro-Series-6QT-Touchscree…

Step 4: Add Food and Insert the Basket

Place food in the frying basket without overfilling it.

Slide the assembled basket fully into the front of the air fryer. Bella-Pro-Series-6QT-Touchscree…

Step 5: Turn On the Touchscreen

Plug the appliance into the outlet.

The air fryer:

1. Sounds an audible beep.
2. Displays the red START/PAUSE control.
3. Waits for START/PAUSE to be pressed.
4. Illuminates the touchscreen after START/PAUSE is selected. Bella-Pro-Series-6QT-Touchscree…

Step 6: Choose a Preset

Press MENU and select:

• Air Fry
• Roast
• Broil
• Bake
• Reheat
• French Fries

Press START/PAUSE once the desired preset is illuminated. Bella-Pro-Series-6QT-Touchscree…

Standby Mode

If no controls are pressed, the digital air fryer remains in standby for approximately 5 minutes. Bella-Pro-Series-6QT-Touchscree…

Manual Cooking Mode

The air fryer can be operated without relying on the preset defaults.

Set the Cooking Time

1. Select the timer control.
2. Press + or –.
3. Adjust the time in one-minute increments.
4. The standard manual range is 1 to 60 minutes. Bella-Pro-Series-6QT-Touchscree…

Set the Temperature

1. Select TEMP.
2. Press + or –.
3. Adjust in 10°F increments.
4. The manual cooking range is 170°F to 400°F. Bella-Pro-Series-6QT-Touchscree…

Start Cooking

When the required temperature and time are shown, press START/PAUSE.

The timer begins counting down while the display alternates or shows the selected temperature and remaining cooking time. Bella-Pro-Series-6QT-Touchscree…

How to Stop or Reset the Air Fryer

To turn the appliance off during a cooking cycle or reset the cooking time, press and hold the red START/PAUSE button. Bella-Pro-Series-6QT-Touchscree…

What Happens When the Basket Is Removed During Cooking?

Pulling the frying basket out immediately stops the cooking process.

When the basket is pushed back into the appliance, cooking resumes. Bella-Pro-Series-6QT-Touchscree…

This makes it possible to shake, stir, turn, or inspect food during the cycle.

End-of-Cooking Indicator

When the timer reaches 00:00:

1. The screen displays END.
2. Five beeps sound.
3. Heating stops automatically.
4. The cooling fan continues operating for approximately 1 minute.
5. The appliance then switches off. Bella-Pro-Series-6QT-Touchscree…

Using the Six Presets

The amount, density, and weight of food affect the actual cooking time.

The manual recommends:

• Checking food halfway through cooking.
• Adjusting time and temperature as required.
• Cooking smaller batches for shorter cooking times and better results.
• Lightly oiling foods that are not already pre-oiled when crispness and browning are desired. Bella-Pro-Series-6QT-Touchscree…

Air Fry and Roast Cooking Chart

The cooking chart provides estimated times based on average food sizes and weights.

A meat thermometer should be used to check meat, poultry, and fish before serving. Bella-Pro-Series-6QT-Touchscree…

Vegetables

The vegetable cooking chart appears on page 13 of the numbered manual. Bella-Pro-Series-6QT-Touchscree…

Beef

Chicken

Pork and Lamb

Bella-Pro-Series-6QT-Touchscree…

Fish and Seafood

Frozen Foods

Desserts

Bella-Pro-Series-6QT-Touchscree…

Tips for Better Air-Frying Results

The cooking instructions recommend several practices:

• Cook smaller batches when possible.
• Check food halfway through the cycle.
• Shake or turn foods that need even browning.
• Adjust time and temperature for food thickness and density.
• Lightly oil foods that are not pre-oiled when a crisp, browned result is wanted.
• Use a meat thermometer when cooking meat, fish, or poultry. Bella-Pro-Series-6QT-Touchscree…

Cleaning and Maintenance

The air fryer contains no user-serviceable internal parts.

Any servicing that requires disassembly beyond normal cleaning should be handled by a qualified appliance repair technician. Bella-Pro-Series-6QT-Touchscree…

Before Cleaning

1. Unplug the air fryer.
2. Let the appliance cool completely.
3. Remove the frying basket.
4. Use the center opening in the crisping tray to lift it out. Bella-Pro-Series-6QT-Touchscree…

Cleaning the Frying Basket and Crisping Tray

Wash both pieces in hot, soapy water.

Do not use:

• Metal utensils
• Abrasive cleaners
• Harsh cleaning products

These can damage the non-stick coating. Bella-Pro-Series-6QT-Touchscree…

Are the Basket and Crisping Tray Dishwasher-Safe?

Yes.

The manual states that both the frying basket and crisping tray are dishwasher-safe.

For better results, place them on the top rack of the dishwasher. Bella-Pro-Series-6QT-Touchscree…

Cleaning the Air Fryer Body

Wipe the exterior with a:

• Soft
• Non-abrasive
• Damp cloth

Do not immerse the body in water. Bella-Pro-Series-6QT-Touchscree…

Storage Instructions

Before storing the air fryer:

1. Unplug it.
2. Make sure all components are clean and dry.
3. Never store it while hot or wet.
4. Lock the basket into the drawer.
5. Store the basket inside the appliance.
6. Keep the air fryer in its original box or another clean, dry location. Bella-Pro-Series-6QT-Touchscree…

BELLA PRO 6 QT Air Fryer Troubleshooting

Air Fryer Does Not Work

Possible causes include:

• The appliance is not plugged in.
• It has switched itself off.
• The frying basket/drawer is not installed correctly.

Recommended actions:

1. Plug the power cord into a wall outlet.
2. Press the red START/PAUSE button.
3. Check that the frying basket and drawer are correctly assembled.
4. Push the basket fully into the air fryer body. Bella-Pro-Series-6QT-Touchscree…

Food Is Not Fully Cooked

The manual associates undercooked food with an overloaded basket.

Try:

• Cooking smaller batches.
• Shaking food two or three times during cooking.
• Increasing the temperature.
• Increasing the cooking time. Bella-Pro-Series-6QT-Touchscree…

Food Is Not Fried Evenly

Recommended actions include:

• Frying smaller batches.
• Applying a light, even coating of spray oil before cooking.
• Shaking the food two or three times during cooking. Bella-Pro-Series-6QT-Touchscree…

Frying Basket Will Not Slide Into the Air Fryer

An overloaded basket can prevent proper insertion.

Remove some food and make sure the basket/drawer is correctly assembled and fully inserted.

The appliance will not switch on unless the drawer is seated properly. Bella-Pro-Series-6QT-Touchscree…

Fresh French Fries Are Not Cooking Evenly or Becoming Crispy

For homemade fries, the manual recommends:

• Removing excess water from raw potatoes.
• Soaking, rinsing, and fully drying the potatoes before frying.
• Using fresh, firm potatoes.
• Drying potato sticks thoroughly with a clean kitchen towel before adding oil.
• Cutting the potato sticks smaller.
• Shaking and spraying the potatoes frequently during cooking. Bella-Pro-Series-6QT-Touchscree…

White Smoke

The printed troubleshooting table lists an overloaded frying basket as the possible cause under “White smoke coming from the Air Fryer.” The solution column on that same row contains potato-preparation directions, including soaking, rinsing, drying, and using fresh, firm potatoes. This article keeps the manual’s troubleshooting information without adding an unsupported alternative cause. Bella-Pro-Series-6QT-Touchscree…

Recipe Guide

The official manual includes several recipes demonstrating Air Fry, Roast, and Bake operation.

Seasoned Kale Chips

The recipe uses:

• 6 cups cleaned and dried raw kale
• Olive-oil spray
• Garlic powder
• Chili powder
• Onion powder
• Smoked paprika
• Salt
• Optional cayenne pepper

The kale is cooked in two batches at 370°F for 3 minutes, with the basket shaken at about the 2-minute point. Bella-Pro-Series-6QT-Touchscree…

Spicy Adobo Drumsticks

The manual includes both roasted and breaded air-fried versions.

The chicken is first brined, dried, seasoned with Adobo, chile de árbol, and paprika, then refrigerated.

The breaded version adds:

• Eggs
• Panko breadcrumbs
• Green onions
• Adobo seasoning
• Optional olive-oil spray Bella-Pro-Series-6QT-Touchscree…

The recipe instructs users to select Air Fry and check doneness when the preset time expires, adding approximately three-minute intervals if more cooking is required. Bella-Pro-Series-6QT-Touchscree…

Fried Shrimp With Homemade Cocktail Sauce

The recipe uses:

• Raw peeled and deveined shrimp
• Eggs
• Panko breadcrumbs
• Old Bay seasoning
• Olive-oil spray

The accompanying cocktail sauce includes ketchup, chili sauce, horseradish, lemon juice, Worcestershire sauce, and hot sauce.

The shrimp are air fried until crisp and golden, with extra cooking added in two-minute intervals if required. Bella-Pro-Series-6QT-Touchscree…

Fresh Salmon With Sweet Chili Sauce

The salmon is coated with:

• Panko
• Sesame seeds
• Salt

The accompanying sauce combines:

• Asian sweet chili sauce
• Ponzu sauce
• Lime or lemon juice
• Sesame seeds
• Cilantro
• Optional hot sauce

The salmon pieces should be spaced apart so hot air can circulate around all sides. Bella-Pro-Series-6QT-Touchscree…

Roasted Sugar Snap Peas With Sesame Seed

The recipe uses:

• 1 lb fresh sugar snap peas
• Cornstarch
• Sesame oil
• Olive oil
• Sesame seeds

Cook at 370°F for 6 minutes and shake the basket after approximately 3 minutes. Bella-Pro-Series-6QT-Touchscree…

Apple-Stuffed Pork Chops

The pork chops are filled with an apple mixture and coated with flour, Cajun seasoning, egg, and seasoned panko.

Because cooking time varies with chop thickness and the amount of filling, the manual recommends checking the internal temperature with a meat thermometer. Its recipe instructs cooking until the pork tests 160°F, adding five-minute intervals when necessary. Bella-Pro-Series-6QT-Touchscree…

Cauliflower Tots

The mixture uses:

• Cauliflower
• Seasoned breadcrumbs
• Parmesan
• Parsley
• Salt
• Eggs

The formed tots are chilled before cooking, then air fried at 370°F for 16 minutes, with the basket shaken at 8 minutes. Bella-Pro-Series-6QT-Touchscree…

Mango Blueberry Ginger Crumble

The fruit mixture combines mango, blueberries, fresh and ground ginger, and sugar.

The crumble topping uses flour, butter, brown sugar, lemon juice, pecans, and salt.

The recipe uses the Bake preset. The manual recommends checking progress three minutes before the end and increasing the temperature up to 390°F if excess liquid remains. Bella-Pro-Series-6QT-Touchscree…

Limited Two-Year Warranty

SENSIO Inc. provides:

• Two-year coverage for mechanical defects in material and workmanship.
• 90-day coverage for non-mechanical parts. Bella-Pro-Series-6QT-Touchscree…

During the warranty period, SENSIO may choose to:

• Repair the product.
• Replace the product.
• Issue a refund. Bella-Pro-Series-6QT-Touchscree…

The warranty applies only to the original retail purchaser and is not transferable. Proof of purchase is required. Bella-Pro-Series-6QT-Touchscree…

Warranty Exclusions

The limited warranty does not cover damage caused by:

• Normal wear
• Negligent use
• Incorrect voltage or current
• Incorrect routine maintenance
• Operation contrary to the instructions
• Unauthorized disassembly
• Unauthorized repair or alteration
• Fire
• Flood
• Hurricane
• Tornado or other listed events Bella-Pro-Series-6QT-Touchscree…

How to Obtain Warranty Service

Contact Customer Service at:

1-866-832-4843

A representative will first attempt to resolve the problem by telephone.

If a return is required, the customer receives a case number and should include:

• Name
• Address
• Daytime telephone number
• Case number
• Description of the problem
• Copy of the original sales receipt Bella-Pro-Series-6QT-Touchscree…

Customer Support

Customer Service: 1-866-832-4843
Website: bellahousewares.com

SENSIO Inc.
New York, NY 10016, USA Bella-Pro-Series-6QT-Touchscree…

Frequently Asked Questions

How do you use the BELLA PRO 6 QT Touchscreen Air Fryer?

Install the crisping tray in the frying basket, add food without overfilling, slide the basket fully into the appliance, plug it in, press START/PAUSE, choose a preset with MENU, and press START/PAUSE again to begin cooking. Bella-Pro-Series-6QT-Touchscree…

What temperature range does the BELLA PRO 6 QT Air Fryer use?

For most manual settings and presets, the adjustable range is 170°F to 400°F in 10°F increments. The Roast preset uses a narrower 350–400°F range, while the manual does not provide an adjustable range for Broil. Bella-Pro-Series-6QT-Touchscree… Bella-Pro-Series-6QT-Touchscree…

What are the six presets on the BELLA PRO air fryer?

The six presets are Air Fry, Roast, Broil, Bake, Reheat, and French Fries. Bella-Pro-Series-6QT-Touchscree…

Can the BELLA PRO air fryer basket go in the dishwasher?

Yes. The frying basket and crisping tray are dishwasher-safe. The manual recommends using the top rack for best results. Bella-Pro-Series-6QT-Touchscree…

Why won’t the BELLA PRO air fryer turn on?

Check that the appliance is plugged in, press the red START/PAUSE button, and make sure the frying basket/drawer is assembled correctly and fully inserted. The air fryer will not operate when the drawer is not seated properly. Bella-Pro-Series-6QT-Touchscree…

Can the cooking time and temperature be changed while the air fryer is running?

Yes. Press TIME and use + or – to change the remaining time in one-minute increments. Press TEMP and use + or – to change temperature in 10°F increments within the range allowed by the selected function. Bella-Pro-Series-6QT-Touchscree…

What happens when the air fryer basket is pulled out during cooking?

Removing the basket immediately pauses air frying. Cooking resumes after the basket is pushed back into the appliance. Bella-Pro-Series-6QT-Touchscree…

Why aren’t homemade French fries crispy?

The manual recommends removing excess water, soaking and rinsing the potatoes, drying them thoroughly, using fresh firm potatoes, cutting the fries smaller if needed, and shaking or spraying them during cooking. Bella-Pro-Series-6QT-Touchscree…
