| Field | Details |
| Document Title | Oster Iced Tea Maker / Máquina para Té Helado |
| Document Type | User Manual / Manual de Instrucciones |
| Brand Name | Oster |
| Product Name | Iced Tea Maker |
| Model Number(s) | TM20 Series |
| PDF File Size | 187 KB |
| Number of Pages | 12 |
| Languages Covered | English and Spanish |

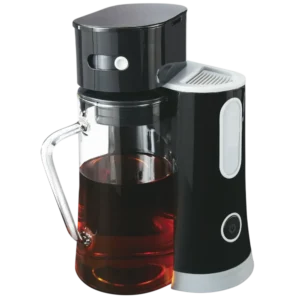

Oster Iced Tea Maker TM20 Series
The Oster Iced Tea Maker TM20 Series is a household electric tea brewing appliance designed to prepare up to 2.5 quarts of iced tea using tea bags or loose tea. It features an adjustable brew strength control, a removable brew basket, a permanent tea filter, and a pitcher with water and ice measurement markings.
The appliance uses a rotating shower head to direct brewed tea into the pitcher. Its water reservoir includes a visible water-level window for accurate filling, while the ON/OFF button and indicator light show when the machine is operating.
The TM20 Series also includes an automatic shut-off function that stops the appliance when the brewing and steeping cycle is complete.
Proper setup, correct water and ice measurements, regular cleaning, and removal of mineral deposits are important for maintaining consistent brewing performance. These instructions cover the appliance’s components, brewing procedures, tea strength adjustment, cleaning, descaling, troubleshooting, and warranty support.
Product Specifications
| Specification | Details |
| Brand | Oster |
| Model | TM20 Series |
| Product Type | Electric Iced Tea Maker |
| Brewing Capacity | 2.5 Quarts |
| Included Pitcher Capacity | 2.5 Quarts |
| Compatible Tea Types | Tea Bags and Loose Tea |
| Tea Filter | Permanent Filter |
| Brew Basket | Removable |
| Brew Strength | Adjustable Steeping Control |
| Water Reservoir | Integrated |
| Water-Level Indicator | Water Window |
| Brewing Head | Rotating Shower Head |
| Operation Control | ON/OFF Button |
| Power Indicator | Yes |
| Automatic Shut-Off | Yes |
| Pitcher Markings | Water and Ice Levels |
| Electrical Plug | Polarized Plug |
| Extension Cord Rating | At Least 10 Amps and 120 Volts |
| Intended Use | Household Use Only |
| Warranty | 1-Year Limited Warranty |
The pitcher includes separate markings for measuring the water used during brewing and the ice needed for preparing the finished beverage.
Parts and Components
The Oster TM20 Series Iced Tea Maker has 12 main components used for water measurement, tea preparation, brewing, and serving.
| Part Number | Component | Description and Function |
| 1 | Top Lid | Covers the brewing compartment and must remain closed while tea is brewing. |
| 2 | Water Reservoir | Holds the water used during the brewing process. |
| 3 | Rotating Shower Head | Moves between positions for filling the reservoir and brewing into the pitcher. |
| 4 | Removable Tea Brew Basket | Holds tea bags, loose tea, and optional flavorings during brewing. |
| 5 | Permanent Filter | Filters loose tea during the brewing process. |
| 6 | Water Window | Displays the amount of water inside the reservoir. |
| 7 | ON/OFF Button and Indicator Light | Starts the brewing cycle and indicates when the machine is operating. |
| 8 | 2.5-Quart Pitcher | Collects and holds the prepared iced tea. |
| 9 | Water-Level Markings | Indicate the amount of water to measure before filling the reservoir. |
| 10 | Ice-Level Markings | Indicate the amount of ice to place in the pitcher. |
| 11 | Pitcher Lid | Covers the pitcher during brewing and serving. |
| 12 | Brew Strength Control | Adjusts the steeping time to produce the desired tea strength. |
Water Reservoir and Water Window
The water reservoir holds the water used to brew tea.
The water window shows the amount of water inside the reservoir and helps prevent incorrect filling.
The pitcher is used to measure the required water before it is poured into the reservoir.
Rotating Shower Head
The rotating shower head can be moved to provide access to the water reservoir.
During brewing, the shower head must be positioned above the tea brew basket and centered over the pitcher.
The shower head must be correctly positioned before the appliance is switched on.
Removable Brew Basket
The removable tea brew basket holds the tea during the brewing cycle.
It can accommodate tea bags or loose tea when used with the permanent filter.
Sugar, lemon, and other flavorings may also be added to the basket according to the desired beverage preparation.
The basket can be removed for filling and cleaning.
Permanent Tea Filter
The permanent filter allows loose tea to be brewed without requiring disposable tea bags.
It fits inside the removable brew basket and separates tea leaves from the brewed beverage.
2.5-Quart Pitcher
The supplied pitcher holds up to 2.5 quarts of prepared iced tea.
The pitcher has separate water and ice markings used during preparation.
Its lid must be installed when the pitcher is positioned beneath the brewing head.
ON/OFF Button and Indicator Light
The ON/OFF button is used to begin the brewing cycle.
Pressing the button firmly activates the appliance, and the indicator light illuminates.
The machine automatically shuts off after completing the brewing and steeping cycle.
Adjustable Brew Strength Control
The brew strength control adjusts how long the tea steeps during preparation.
The control can be positioned according to the desired tea strength.
A longer steeping period produces a more full-flavored beverage.
Important Safety Instructions
The Oster TM20 Series Iced Tea Maker uses electrical power and heated water during brewing. The following precautions must be followed to reduce the risk of burns, fire, electric shock, and personal injury.
General Safety Precautions
- All operating instructions must be read before the appliance is used.
- Hot surfaces must not be touched. Handles and control knobs must be used when handling the appliance.
- The power cord, electrical plug, and main appliance must never be immersed in water or any other liquid.
- Close adult supervision is required when the appliance is used by or near children.
- The appliance must be unplugged when not in use and before cleaning.
- The appliance must cool before components are removed, installed, or cleaned.
- An appliance with a damaged electrical cord, damaged plug, malfunction, or other damage must not be operated.
- Repairs or adjustments must be performed by an authorized service center.
- Accessories not recommended for Oster products must not be used.
- The appliance must not be used outdoors.
- The power cord must not hang over a countertop or table edge or touch hot surfaces.
- The iced tea maker must not be placed on or near a heated gas burner, electric burner, or inside a heated oven.
- The appliance is designed for household use only.
- The appliance must only be used for its intended purpose.
Hot Water and Steam Safety
The brewing process produces hot water and steam.
The following precautions apply:
- The top lid must remain closed throughout the brewing cycle.
- The brew basket and water reservoir must not be touched while hot.
- The appliance must not be moved during operation.
- The appliance must cool before being moved or cleaned.
- Care is required when handling the brewing area after a cycle because steam may continue escaping as the appliance cools.
- The lid must not be removed during brewing.
Warning: Removing the lid during brewing can cause scalding from escaping steam.
Pitcher Safety
The supplied pitcher is designed specifically for use with the Oster iced tea maker.
To prevent breakage or injury:
- The pitcher must not be used on a stovetop.
- It must not be placed in any oven, including a microwave oven.
- A cracked or damaged pitcher must not be used.
- Steel wool, abrasive cleaners, and harsh cleaning materials must not be used on the pitcher.
- The pitcher must be protected from sharp impacts, scratches, and rough handling.
Safe Pitcher Placement
The iced tea maker must never be operated unless:
- The pitcher lid is installed.
- The pitcher is positioned directly beneath the rotating brewing head.
- The pitcher fits snugly against the appliance.
Incorrect pitcher placement may interfere with collecting the brewed tea.
Safe Appliance Placement
The iced tea maker must be positioned on a hard, flat, and level surface.
The appliance must remain well back from the edge of the countertop.
Tablecloths, towels, or other fabrics must not be placed underneath it because they can restrict airflow beneath the appliance.
Electrical Safety
The appliance must be disconnected by grasping and removing the molded electrical plug.
The power cord itself must not be pulled or jerked when unplugging the appliance.
The main unit must never be immersed in water, which can create an electric shock hazard, damage the appliance, and void the warranty.
Polarized Plug Instructions
The iced tea maker uses a polarized electrical plug with one blade wider than the other.
The plug is designed to fit a polarized outlet in only one orientation.
If the plug does not fit:
- Remove it from the outlet.
- Reverse its orientation.
- Attempt to insert it again.
- If the plug still does not fit, contact a qualified electrician.
The plug must not be modified.
Extension Cord Requirements
The appliance has a short power cord to reduce the risk of entanglement or tripping.
An extension cord may be used when the required precautions are followed.
| Requirement | Specification |
| Minimum Electrical Rating | 10 Amps |
| Minimum Voltage Rating | 120 Volts |
| Cord Position | Must not hang over the edge of a table or countertop |
| Safety Consideration | Must not create a tripping hazard or be accessible for children to pull |
Service and Repair Safety
The main appliance contains no user-serviceable internal parts.
Service covers must not be removed.
Only authorized service personnel may repair the iced tea maker.
The appliance must also never be used to reheat a previously prepared beverage by passing it through the brewing system.
Before First Use
The Oster TM20 Series Iced Tea Maker must be cleaned and rinsed before preparing its first beverage.
The initial cleaning process removes residue from the removable components and flushes the brewing system with fresh water.
Warning: To prevent steam-related injuries, the appliance must not be plugged in until the water reservoir has been filled, the top lid is closed, and the pitcher is correctly positioned.
Cleaning the Removable Components
- Open the top lid of the iced tea maker.
- Remove the tea brew basket.
- Remove the pitcher and pitcher lid.
- Wash the pitcher, pitcher lid, and brew basket using mild detergent and water, or clean these removable components in a dishwasher.
- Rinse each component thoroughly.
- Return the clean brew basket to its position when preparing for the initial rinse cycle.
Running the Initial Cleaning Cycle
The initial cleaning procedure uses fresh water to rinse the brewing system.
- Fill the pitcher with water to its upper water-level marking.
- Rotate the brewing head away from the filling area to access the water reservoir.
- Pour the measured water into the reservoir. Do not overfill.
- Open the top lid and insert the brew basket without adding tea.
- Close the top lid.
- Fill the pitcher with water to its ice-level marking for the cleaning cycle.
- Place the pitcher lid on the pitcher.
- Slide the pitcher toward the appliance until it fits beneath the rotating brewing head.
- Insert the power cord into an electrical outlet.
- Press the ON button to begin the rinse cycle.
- Allow the appliance to complete the cycle and shut off automatically.
- Slide the pitcher away from the appliance.
- Discard the water into the sink.
The iced tea maker is then ready for normal brewing.
If the Appliance Starts When Plugged In
The brewing cycle may begin immediately when the appliance is connected to an outlet if the ON button has been pressed accidentally.
If a brewing cycle must be stopped before completion, the molded electrical plug must be removed from the outlet.
The cord itself must not be pulled.
How to Make Iced Tea with the Oster TM20 Series
The Oster Iced Tea Maker TM20 Series can prepare iced tea using tea bags or loose tea.
The brewing procedure uses water measured with the pitcher, tea placed in the brew basket, and ice or cold water added to the pitcher before brewing.
Step 1: Measure the Water
- Remove the pitcher from the appliance.
- Fill the pitcher with fresh, cold water to the designated water-level marking.
- Check that the pitcher is not overfilled.
The water marking provides the measurement used to fill the appliance’s reservoir.

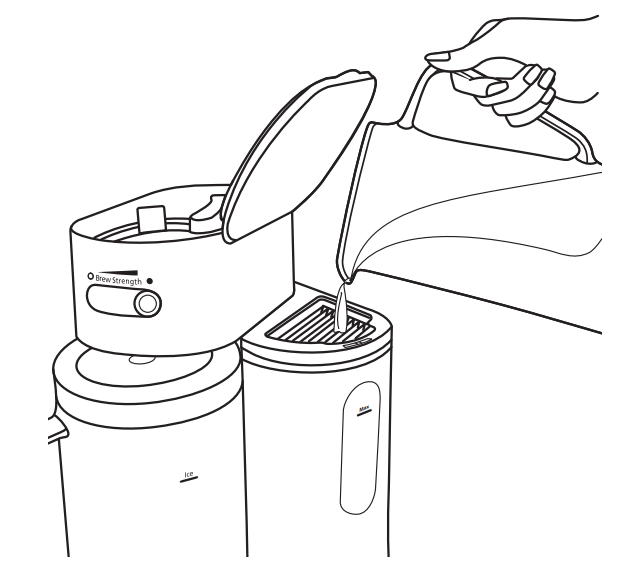

Step 2: Fill the Water Reservoir
- Rotate the brewing head to provide access to the water reservoir.
- Pour the measured water from the pitcher into the reservoir.
- Check the water level through the water window.
The reservoir must not be overfilled.
Step 3: Add Tea to the Brew Basket
- Open the top lid.
- Make sure the removable brew basket is correctly installed.
- Add the desired amount of tea.
- Use tea bags or loose tea with the permanent filter.
For a full 2.5-quart batch, the manufacturer recommends:
| Tea Type | Recommended Quantity |
| Tea Bags | 5–7 tea bags |
| Loose Tea | 2–3 tablespoons |
| Brewed Iced Tea | 2.5 quarts |
The quantity of tea may be adjusted according to the desired flavor.
Step 4: Add Optional Flavorings
Sugar, lemon, or other desired flavorings may be placed in the brew basket with the tea.
The flavorings are incorporated during the brewing process.
Step 5: Position the Rotating Shower Head
After the tea has been added:
- Rotate the shower head into its brewing position above the brew basket.
- Make sure it is correctly positioned.
- Close the top lid securely.
The lid must remain closed while the appliance is brewing.
Step 6: Adjust the Brew Strength
Use the adjustable steeping lever to select the desired tea strength.
The steeping control changes the amount of time the tea is allowed to steep during brewing.
A longer steeping period produces a stronger, fuller-flavored tea.
Step 7: Fill the Pitcher with Ice
Fill the pitcher with ice cubes to the designated ice-level marking.
The ice helps cool the brewed tea as it enters the pitcher.
Preparing Iced Tea Without Enough Ice
If sufficient ice is unavailable, cold water may be substituted.
When using cold water instead of ice:
- Fill the pitcher with cold water.
- Stop at the WATER-level marking.
- Do not fill to the ICE-level marking.
Important: When substituting cold water for ice, filling to the ice-level marking can cause the pitcher to overflow during brewing.
Step 8: Position the Pitcher
- Place the lid on the pitcher.
- Slide the pitcher toward the iced tea maker.
- Make sure it rests flush against the appliance.
- Confirm that the rotating brewing head is centered above the pitcher.
The pitcher must be correctly positioned before the appliance is switched on.
Step 9: Start the Brewing Cycle
- Insert the electrical plug into a suitable wall outlet.
- Press the ON button firmly.
- Check that the ON indicator light illuminates.
The appliance will begin its brewing and steeping cycle.
Step 10: Allow the Brewing Cycle to Finish
The iced tea maker automatically shuts off when the brewing cycle is complete.
After the appliance switches off:
- Wait approximately 30 seconds.
- Slide the pitcher away from the appliance.
- Serve the prepared iced tea.
The finished tea may become cloudy as it chills because tea naturally contains tannic acids.
Step 11: Remove Used Tea
After the beverage has been prepared:
- Allow the appliance and remaining contents to cool.
- Open the top lid.
- Rotate the shower head away from the brew basket.
- Remove the brew basket.
- Discard the used tea bags or loose tea.
- Rinse the basket with clean water.
The appliance must cool before the brewing components are handled.
Adjustable Brew Strength Settings
The Oster TM20 Series includes an adjustable tea steeping control.
This feature allows the strength of the prepared tea to be changed by adjusting the steeping time.
How to Adjust Tea Strength
- Prepare the water reservoir and brew basket.
- Add the required amount of tea.
- Locate the brew strength control on the appliance.
- Move the steeping lever to the desired strength setting.
- Complete the remaining brewing preparation steps.
- Start the brewing cycle.
The selected steeping setting affects how long the tea remains in contact with the brewing water.
Adjusting the Flavor of Iced Tea
Tea flavor can be adjusted through two supported methods:
- Tea quantity: Adjust the amount of tea placed in the brew basket.
- Steeping control: Change the steeping time using the brew strength lever.
The manufacturer’s recommended starting quantity for 2.5 quarts is 5–7 tea bags or 2–3 tablespoons of loose tea.
Brewing with Tea Bags
Tea bags can be placed directly inside the removable brew basket.
For a full 2.5-quart batch:
- Measure the water using the pitcher.
- Pour the water into the reservoir.
- Place 5–7 tea bags inside the brew basket.
- Position the shower head above the brew basket.
- Close the top lid.
- Adjust the steeping control.
- Fill the pitcher with ice or substitute cold water using the correct marking.
- Fit the pitcher lid and position the pitcher beneath the brew head.
- Press the ON button to begin brewing.
- Wait for automatic shut-off and allow 30 seconds before removing the pitcher.
After the appliance cools, the used tea bags can be removed and discarded.
Brewing with Loose Tea
The permanent filter allows loose tea leaves to be used instead of tea bags.
For a full 2.5-quart batch, the recommended quantity is 2–3 tablespoons of loose tea.
How to Prepare Loose-Leaf Iced Tea
- Open the top lid.
- Make sure the permanent filter is properly positioned in the brew basket.
- Add the desired amount of loose tea.
- Adjust the brew strength control.
- Complete the water and pitcher preparation steps.
- Start the brewing cycle.
- Allow the appliance to shut off automatically.
- Wait 30 seconds before removing the pitcher.
After the appliance has cooled, remove the brew basket, discard the used tea leaves, and rinse the basket.
Automatic Shut-Off and Indicator Light
The iced tea maker has an ON/OFF button, an operating indicator light, and an automatic shut-off function.
ON Indicator Light
The indicator light illuminates when the ON button is pressed and the appliance begins operating.
The light provides a visual indication that the brewing system is active.
Automatic Shut-Off
The appliance automatically stops operating after completing its brewing and steeping cycle.
The pitcher should remain in position until the brewing cycle has finished.
After automatic shut-off, the manufacturer instructs that approximately 30 seconds should pass before the pitcher is removed.
Stopping a Brewing Cycle Early
To stop a brewing cycle before completion:
- Grasp the molded electrical plug.
- Remove it from the wall outlet.
- Allow the appliance to cool before handling the brewing components.
The power cord must not be pulled or jerked.
Cleaning and Maintenance Instructions
The Oster TM20 Series Iced Tea Maker must be unplugged and allowed to cool before cleaning.
Regular cleaning helps remove tea residue and mineral deposits from the removable brewing components.
How to Clean the Iced Tea Maker
- Disconnect the electrical plug from the wall outlet.
- Allow the appliance to cool completely.
- Open the top lid.
- Rotate the shower head away from the brew basket.
- Remove the brew basket and permanent filter.
- Discard any remaining tea leaves or tea bags.
- Wash the removable brew basket, pitcher, and pitcher lid using mild detergent and water.
- Rinse the washed components thoroughly.
- Wipe the main appliance with a damp cloth.
- Reassemble the components after cleaning.
The pitcher, pitcher lid, and brew basket may also be cleaned in a dishwasher.
Caution: The main iced tea maker must never be immersed in water or any other liquid or placed in a dishwasher.
Removing Mineral Deposits from the Pitcher and Brew Basket
Hard water can cause mineral deposits to form inside the pitcher and brew basket.
These deposits can be removed using warm, undiluted white household vinegar.
- Remove the pitcher and brew basket from the appliance.
- Fill the pitcher and brew basket with warm, undiluted white household vinegar.
- Allow the vinegar to remain in the components for approximately 20 minutes.
- Empty the vinegar.
- Rinse both components thoroughly with clean water.
Cleaning Precautions
The following materials must not be used to clean the pitcher or appliance:
- Harsh cleaning chemicals
- Abrasive cleaning products
- Steel wool pads
- Other abrasive cleaning materials
Abrasive materials can scratch the pitcher and may contribute to breakage.
The main appliance must be cleaned using a damp cloth only.
How to Descale the Oster TM20 Series Iced Tea Maker
Minerals in tap water, including calcium and limestone deposits, can accumulate inside the brewing system.
Over time, mineral buildup may reduce the appliance’s brewing performance.
The manufacturer recommends regular descaling using undiluted white household vinegar.
Signs That the Iced Tea Maker Needs Descaling
Descaling may be necessary when:
- The appliance produces more steam than usual.
- The pumping action stops before all the water has passed through the brewing system.
- Mineral deposits become noticeable inside the brewing components.
The required descaling frequency depends on the mineral content of the water used.
Recommended Descaling Frequency
| Water Type | Recommended Cleaning Interval |
| Soft Water | Every 80 Brewing Cycles |
| Hard Water | Every 40 Brewing Cycles |
Descaling Solution
The manufacturer recommends:
| Cleaning Material | Quantity |
| Undiluted White Household Vinegar | 1 Quart |
The vinegar is used without dilution during the descaling cycle.
Step-by-Step Descaling Instructions
- Make sure the iced tea maker is ready for the cleaning cycle.
- Pour 1 quart of undiluted white household vinegar into the water reservoir.
- Place the lid on the pitcher.
- Position the pitcher beneath the rotating brewing head.
- Press the ON button to begin the brewing cycle.
- Allow approximately 1 cup of vinegar to pass through the brewing system and collect in the pitcher.
- Unplug the appliance from the electrical outlet.
- Allow the vinegar solution to remain in the brewing system for 30 minutes.
- Reconnect the appliance to electrical power.
- Continue the brewing cycle to pump the remaining vinegar through the appliance.
- Wait for the iced tea maker to shut off.
- Unplug the appliance.
- Remove the pitcher.
- Discard the used vinegar solution.
Rinsing After Descaling
The brewing system must be rinsed with clean water after the vinegar cleaning cycle.
- Fill the pitcher with clean tap water to the designated water-level marking.
- Pour the measured water into the reservoir.
- Place the covered pitcher beneath the rotating brewing head.
- Run a brewing cycle using clean water instead of vinegar.
- Allow the cycle to finish.
- Unplug the appliance.
- Remove the pitcher and discard the rinse water.
- Repeat the clean-water rinsing procedure if necessary.
The brewing system can be used again after the cleaning solution has been flushed out.
Troubleshooting Guide
The following troubleshooting information covers operating conditions described in the Oster TM20 Series instructions.
| Problem or Symptom | Possible Cause or Condition | Recommended Action |
| Excessive steam during brewing | Mineral deposits may have accumulated in the brewing system. | Run the recommended vinegar descaling procedure. |
| Water stops pumping before the reservoir is empty | Mineral buildup may be affecting the brewing system. | Descale the appliance using 1 quart of undiluted white household vinegar. |
| Brewing begins when the appliance is plugged in | The ON button may have been pressed unintentionally. | Disconnect the plug if the cycle must be stopped. Complete the required preparation before reconnecting power. |
| Brewed tea becomes cloudy after cooling | Naturally occurring tannic acids in tea can cause cloudiness. | This is a normal condition described by the manufacturer. |
| Pitcher may overflow when cold water replaces ice | The pitcher has been filled to the ICE marking instead of the WATER marking. | When substituting cold water for ice, fill only to the WATER marking. |
| Brewed tea is not at the desired strength | The tea quantity or steeping setting may need adjustment. | Adjust the amount of tea or the brew strength control. |
| Pitcher is cracked or damaged | The pitcher has experienced damage. | Do not use the cracked pitcher. Contact Oster for replacement pitcher information. |
| Appliance has a damaged cord or plug or malfunctions | An electrical or mechanical fault may be present. | Stop using the appliance and contact an authorized service center. |
Iced Tea Maker Produces Too Much Steam
An increase in steam production can indicate mineral deposits inside the appliance.
The manufacturer recommends descaling the system using undiluted white household vinegar.
The cleaning frequency depends on whether the water supply is soft or hard.
Water Stops Pumping During Brewing
If the pumping process stops before all the water has moved through the appliance, mineral buildup may be affecting the brewing system.
The manufacturer identifies this as a condition that calls for descaling.
The recommended cleaning process uses 1 quart of white vinegar, a 30-minute soaking period, and a clean-water rinse cycle.
Iced Tea Maker Starts When Plugged In
The appliance may begin a brewing cycle when connected to electrical power if the ON button was previously pressed accidentally.
To stop the appliance during a brewing cycle, disconnect the molded plug from the electrical outlet.
Before restarting, the water reservoir must be filled, the top lid closed, and the pitcher correctly positioned.
Brewed Iced Tea Looks Cloudy
Iced tea may develop a cloudy appearance as it cools.
The manufacturer explains that this can occur because tea naturally contains tannic acids.
Pitcher Overflows During Brewing
When ice is unavailable, cold water may be placed in the pitcher instead.
However, the cold water must reach only the WATER-level marking.
Filling the pitcher with cold water to the ICE-level marking can cause overflow as the freshly brewed tea enters.
When to Contact Customer Service
The appliance must not be operated if its electrical cord or plug is damaged, it malfunctions, or it has suffered other damage.
Service covers must not be removed, and internal repairs must not be attempted.
All repairs must be performed by Sunbeam or an authorized Oster service center.
Replacement Parts and Accessories
The Oster TM20 Series includes removable components such as the brew basket, permanent filter, pitcher, and pitcher lid.
Replacement Pitcher
Replacement pitchers may be obtained through stores carrying Oster replacement parts.
For assistance in locating a replacement pitcher, the manufacturer provides these contact options:
| Region | Customer Service |
| United States | 1-800-334-0759 |
| Canada | 1-800-667-8623 |
| Website | www.oster.com |
The replacement pitcher must be suitable for the Oster TM20 Series iced tea maker.
The supplied pitcher is designed for the appliance and must not be used on a stovetop or in an oven.
Additional Replacement Components
For information about replacement parts, the manufacturer’s parts diagram directs owners to Oster Customer Service or the official website.
Warranty Information
The Oster TM20 Series Iced Tea Maker is covered by a 1-year limited warranty under the terms provided by Sunbeam Products, Inc., doing business as Jarden Consumer Solutions.
Warranty Coverage
The manufacturer warrants that the product will be free from defects in materials and workmanship for one year from the original retail purchase date.
During the warranty period, Jarden Consumer Solutions may:
- Repair the defective appliance or component.
- Replace the defective appliance or component with a new or remanufactured product or part.
- Provide a comparable product of equal or greater value if the original model is no longer available.
The decision to repair or replace a defective product rests with the manufacturer.
Warranty Eligibility
The warranty applies to the original retail purchaser.
It begins on the date of the initial retail purchase and is not transferable.
The original sales receipt must be retained because proof of purchase is required for warranty service.
Warranty Exclusions
The manufacturer’s limited warranty does not cover normal wear of parts or damage caused by:
- Negligent operation
- Misuse of the appliance
- Incorrect electrical voltage or current
- Operation contrary to the manufacturer’s instructions
- Unauthorized disassembly
- Unauthorized electrical or mechanical repairs
- Modifications performed by anyone other than an authorized service center
- Events such as fire, flooding, hurricanes, or tornadoes
Attempting to repair or adjust the electrical or mechanical functions of the appliance may void the warranty.
Warranty Limitations
The warranty contains limitations concerning incidental and consequential damages, implied warranties, and other liabilities.
Some limitations may not apply in every state, province, or jurisdiction.
The warranty grants specific legal rights, and additional rights may vary according to the applicable location and law.
Customer Support Information
For questions about the Oster TM20 Series Iced Tea Maker, warranty claims, repairs, and replacement parts, the manufacturer provides the following support information.
| Contact Type | Details |
| Brand | Oster |
| Customer Service | Sunbeam Consumer Service |
| United States Phone | 1-800-334-0759 |
| Canada Phone | 1-800-667-8623 |
| Manufacturer Website | www.oster.com |
United States Support
Sunbeam Products, Inc., doing business as Jarden Consumer Solutions
Boca Raton, Florida 33431
Canada Support
Sunbeam Corporation (Canada) Limited, doing business as Jarden Consumer Solutions
20 B Hereford Street
Brampton, Ontario L6Y 0M1
How to Obtain Warranty Service
Customers requiring warranty assistance should contact the manufacturer by telephone.
The service representative can provide information about the nearest authorized service center.
Before contacting support, the following information should be available:
- Appliance model number
- Original purchase date
- Description of the problem
- Customer contact details
The manufacturer requests that communications include the customer’s name, address, telephone number, and a description of the issue.
Important: The appliance must not be returned to the original retailer or mailed directly to the manufacturer’s corporate addresses for warranty service.
Frequently Asked Questions
1. How do I use the Oster TM20 Series Iced Tea Maker?
The pitcher is filled with fresh water to its water-level marking, and the measured water is poured into the reservoir. Tea bags or loose tea are placed in the brew basket, the rotating shower head is positioned correctly, and the brew strength is selected. The pitcher is filled with ice to its ice marking, covered, and placed beneath the brewing head. Pressing the ON button starts the brewing cycle, which ends automatically.
2. How many tea bags are needed for the Oster TM20 iced tea maker?
The manufacturer recommends using 5–7 tea bags for a full 2.5-quart batch of iced tea. The amount may be adjusted according to the preferred tea strength and the selected steeping setting.
3. Can loose tea be used in the Oster TM20 Series?
Yes. The Oster TM20 Series includes a permanent filter for preparing loose-leaf iced tea. The recommended quantity for 2.5 quarts is 2–3 tablespoons of loose tea. The tea is placed in the removable brew basket before the brewing cycle begins.
4. How do I adjust the tea strength?
The TM20 Series includes an adjustable brew strength control. Moving the steeping lever changes the length of the steeping period. A longer steeping period produces a more full-flavored tea. The amount of tea placed in the brew basket may also be adjusted.
5. Can the Oster TM20 make iced tea without ice?
Yes. If sufficient ice is unavailable, cold water may be substituted. The pitcher must be filled only to the WATER-level marking when using cold water instead of ice. Filling to the ICE-level marking with water can cause overflow during brewing.
6. How do I clean and descale the Oster TM20 iced tea maker?
The manufacturer recommends pouring 1 quart of undiluted white household vinegar into the water reservoir and beginning a brewing cycle. After approximately 1 cup has entered the pitcher, the appliance must be unplugged and allowed to stand for 30 minutes. The remaining vinegar is then pumped through the system, discarded, and followed by a clean-water rinse cycle. The recommended descaling interval is every 80 cycles for soft water or every 40 cycles for hard water.
7. Why is my Oster iced tea maker not pumping all the water?
Mineral deposits can affect the brewing system and cause pumping to stop before all the water has passed through the appliance. The manufacturer recommends descaling the iced tea maker with undiluted white household vinegar using the specified cleaning procedure.
8. Does the Oster TM20 Series shut off automatically?
Yes. The Oster TM20 Series includes an automatic shut-off function that stops operation when the brewing and steeping cycle is complete. The manufacturer recommends waiting approximately 30 seconds after the cycle finishes before removing the pitcher.
